WRL-5-E-S-2-B, Lorlin IP67 Key Switch, SPDT, 3 A@ 50 V dc, 5 A@ 115 V ac 2-Way Common-Key, Выключатель с ключом

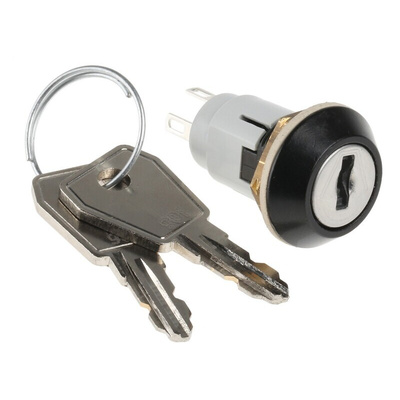

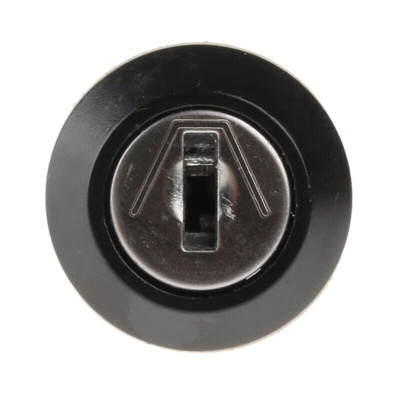

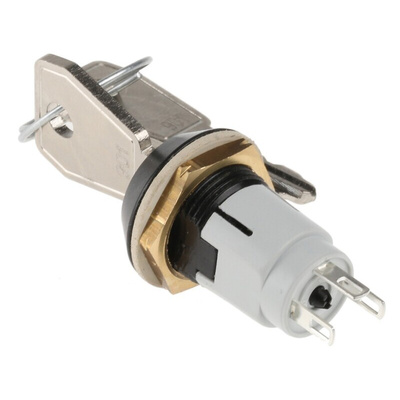

Lorlin Key Switch

The Lorlin key switch has a single pole double throw(SPDT) contact configuration. It is an innovative, miniature, key-operated lock switch. It is suitable for continued exterior use. It has a 90⁰ lock movement.
The switch has a contact current rating of 3A at 50VDC and 5A at 115VAC.

Features and Benefits

Single pole
Up to 200 key combinations, keys to differ
Common keys available, keys to pass
Keys are double entry (they can be inserted into the lock either way up)
Occupies small panel area
Easily assembled through front of equipment panel
Rear projection less than 30mm from panel
For continued exterior use lubricate with oil regularly
Number of positions are 2
Key trapping

Common key type
Solder terminal
Case material is nylon 66
Bezel shape is tapered
Depth behind panel is 22.4mm
Contact material is silver-plated brass
Mechanical life is 10,000 operations
Operating temperature ranges between -20°C and 65°C

Applications

Marine
Control panels
Lighting controls

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP67 rated
