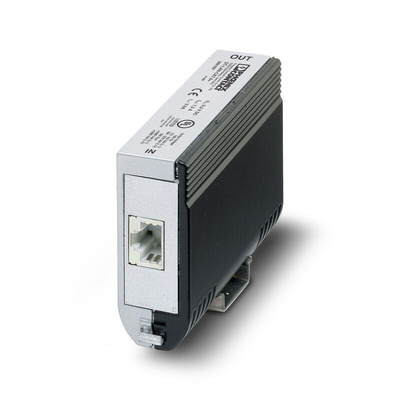

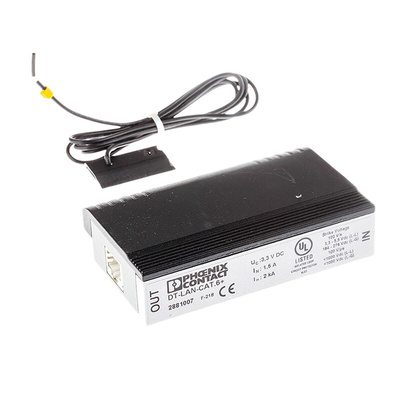

2881007, Phoenix Contact DT-LAN-CAT.6+ Series Adapter

Phoenix Contact Surge Protection Module, RJ45 Connectivity, 1 Input - DT-LAN-CAT.6+ - 2881007

Looking to protect your sensitive networking equipment against power faults? Fit this Phoenix Contact surge protection module. By cutting an issue off as it pops up, it minimises the risk of hardware damage from overloads and short circuits. As a Cat6+ device, the block carries 10Gbps transfer rates to handle fast-moving network connections. Installation is no trouble, as it snaps onto a standard DIN rail. Thanks to support for PoE connections, you can be sure it keeps power and data flowing freely.
Thanks to the module's regulation RJ45 ports, it takes industry-standard connectors without a snag to provide hassle-free system assembly. Dimensions of just 25 (W) x 102 (H) x 63.5mm (D), ensure it slots neatly into busy cabinets where space is at a premium, while labelled sockets clearly indicate the input and output during hook-up. As the block comes with impact-resistant zinc housing, you can rest assured it handles knocks and scrapes without suffering damage.

Features & Benefits

• Tested to IEC 61643-21 standards to ensure effective surge protection
• IEC 11801-approved, indicating safe use with telecommunication systems
• Performs in temperatures between -40°C and +70°C to protect connections in tough settings

Datasheet

Line Drawing - 2881007

Instruction Sheet - 2881007
