934097101, Hirschmann Test & Measurement Red Male Banana Plug, 4 mm Connector, Screw Termination, 24A, 1000V ac/dc, Nickel Plating, Разъем

Hirschmann Test & Measurement Banana Plug

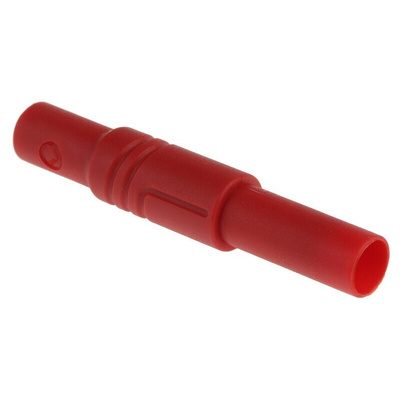

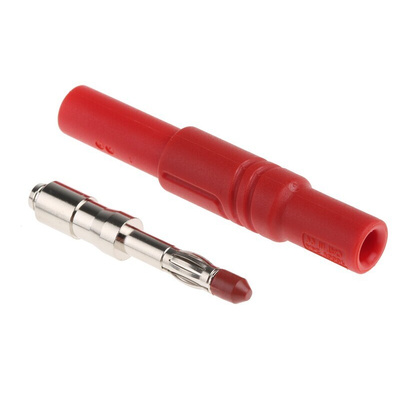

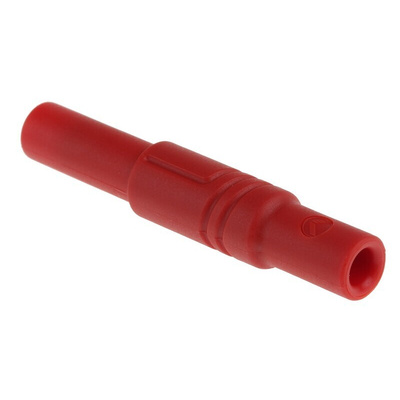

The Hirschmann test & measurement red, male banana plug is a 4mm safety straight connector with screw connection for leads from 0.5mm² to 1.5mm² and an outer diameter maximum of 3.2mm. This has a caged spring simple assembly by 'Click-System'. It has a voltage rating of 1000VAC/DC and a current rating of 24A.

Features and Benefits

Nickel-plated beryllium copper contact
Screw termination
Insulation material is polyamide
Spring loaded pin
Length is 54.3mm

Applications

Electrical connections
Electronic connections

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
UL 94 V-2 approved
IEC61010
CAT III safety rated

Datasheet
