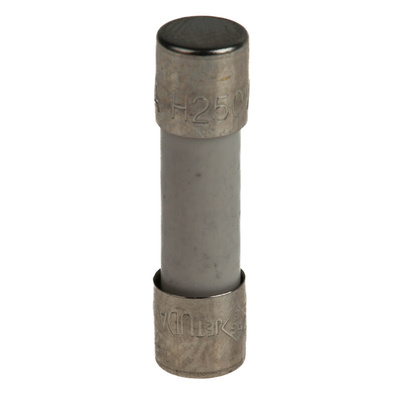

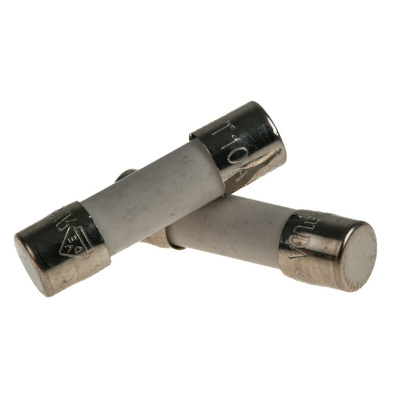

RS PRO 10A T Ceramic Cartridge Fuse, 5 x 20mm, Предохранитель

RS PRO, 10 A Ceramic Cartridge Fuse, 5 x 20 mm, Speed T

Ensure your electrical equipment is safe from damage with this ceramic cartridge fuse from RS PRO. This 10 A component will blow in the event of a power surge, which keeps your important devices free from breakage. It can also be used to isolate sub-systems from the main electrical system once a fault has appeared.
The fuse is T-speed rated and it's slow acting, which means it can tolerate higher levels of current for short periods without fusing. It has a high breaking capacity (HBC), so it's possible to use it in more powerful circuits. This component is suited to applications including air-conditioning, fuse boards and pumps.
This ceramic cartridge fuse can be used in temperatures as high as +125°C and as low as -55°C, so it will withstand even demanding industrial environments. You'll find this product in both home and business settings, from living rooms to manufacturing facilities.

Features and Benefits

• Ceramic body material
• Breaking capacity (at maximum voltage rating) of 1500 A
• Current rating of 10 A
• Diameter of 5 mm
• Fuse size of 5 x 20 mm
• T fuse speed
• High rupture capacity
• No indicator
• Maximum operating temperature of +125°C
• Minimum operating temperature of -55°C
• Overall length of 20 mm
• Resistance of 0.0050 Ω
• UDA series
• Miniature size designation
• Voltage rating of 250 V AC

VDE

RS PRO Datasheet
