7TCA296020R0247 SP32/M32/B, Adaptaflex Swivel, Conduit Fitting, 32mm Nominal Size, M32, Brass, Silver

Adaptaflex Conduit Fitting, M32 Thread Size, IP54 Rating - 7TCA296020R0247 SP32/M32/B

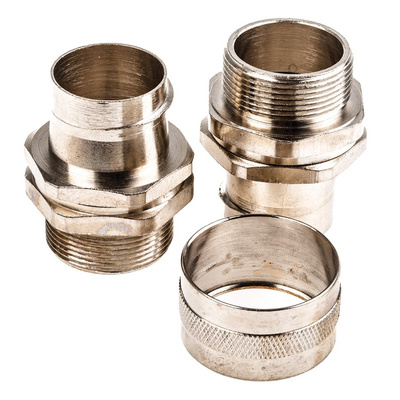

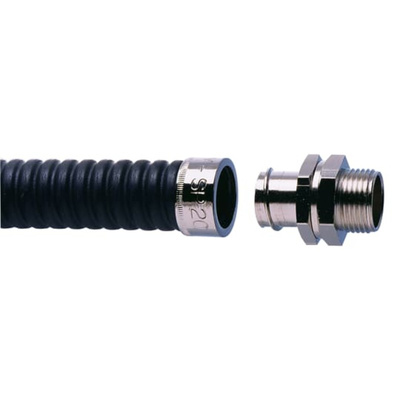

Reduce strain on your flexible conduits with this swivel fitting from Adaptaflex. It uses screw fittings to secure conduits onto threaded enclosures and knockouts or to join two lengths of tubing together. The body is made from nickel-plated brass to make it strong and resistant to corrosion. Formed in two pieces, it swivels for easy installation and is capable of rotating 360° after tightening to reduce the twisting and pulling of conduits. This improves the durability of cable protection systems.

Features & Benefits

• IP54 rated to protect against dusty environments and splashes of water
• Wide operating temperature between -45°C and +250°C, for use in harsh conditions
• With minimal parts and tools needed for installation, it's easy to fit while you're out in the field

Applications

• Public buildings
• Transport industry
• Office and residential blocks

Can I use this conduit fitting on any trunking?

This fitting has a metric M32 thread size and nominal diameter of 32mm for use with compatible PVC and metal-coated conduits. This includes Adaptaflex's SP, SN and LFH-SP series of conduits.

Liquid Resistant Covered Steel Flexible Systems - Part Number

Datasheet - 7TCA296020R0247 SP32/M32/B

Catalogue - Flexible Cable Protection
