WPS-NW23, PMA, Conduit Fitting, 23mm Nominal Size, M25, Nylon 6, Black

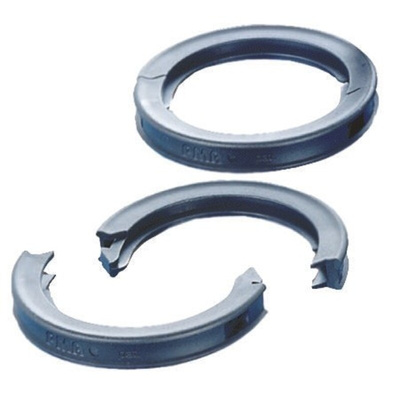

PMAFIX IP69K Upgrade Kits

These kits upgrade the PMAFIX IP68 fittings to IP69K which allows protection against high pressure water and steam jets in accordance to DIN 40050 and are easily retrofitted on existing installations.

Easy installation due to snap lock
High retention forces
Groove provides space for cable ties with marking elements
Fits all PMA conduit profiles

Note

The protection rings have to be mounted onto the conduit directly at the end of the fitting

PMAFLEX Polyamide & Polyurethane (IP68/66)

Features for all conduit types:

IP68/66 (dependent upon Fittings)
Halogen & Cadmium free
None flame propagating
Resistant to: fuels, mineral oils, lubricants, alkalies and most common solvents
PCL: -40°C to +105°C operating temperature (+150°C short term), Impact strength >6J, flame class UL94 V2, CSA approved
PUE: -60°C to +50°C operating temperature, excellent reversed bending properties
VOH: -40°C to 105°C operating temperature (+150°C short term), Impact strength >20J, UL rec
PAH: -40°C to 105°C operating temperature (+150°C short term), Impact strength >18J
VAML/VAM: -40°C to 105°C operating temperature (+150°C short term)
PCS: -40°C to +105°C operating temperature (+150°C short term), Impact strength >7.5J, CSA approval, UL
