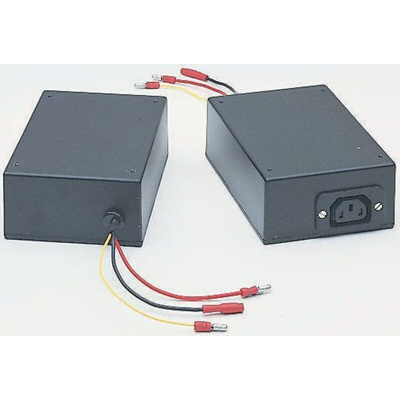

SM1760, Custom Power Design DC-DC Converter, 300V dc/ 400 mA, 600 mA Output, 11 → 32 V dc Input, Mounting Bracket, +30°C, Адаптер питания

Battery to 300Vdc Converter 120W - 3 Pin IEC Output Socket

The SM1760 provides a mains level DC output which is the most efficient means of supplying power to equipment employing switch mode type power conversion (most modern electric equipment).,To check compatibility: Measure the resistance between the live and the neutral pins of the equipments connector (with equipment mains switch in 'on' position). If the resistance is greater than 10KΩ (no mains transformer evident) the equipment should be compatible.

Wide input voltage range (11-32Vdc)
In line input connectors (supplied)
Shuttered IEC output socket
Ignition or remote on/off control by logic compatible input
Inbuilt RFI filter for low noise
High efficiency (84% typical)
High output surge rating
Output short circuit protection
Rugged metal case construction

Note

Suitable for negative earth battery systems only.,Not suitable for use with equipment employing a 50Hz mains transformer or AC motors.

Caution

The user is responsible for ensuring the suitability of any equipment connected to these vehicle power adaptors. For inside use only. Protect from moisture.

Battery to Mains Level DC Output
