7TCA296000R2199 PAFS21/BL/10M, Adaptaflex Flexible Conduit, 20mm Nominal Diameter, Polyamide, Black, Кабелепровод

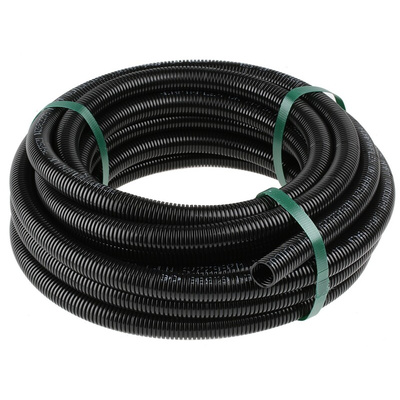

Adaptaflex Flexible Plastic Conduit, 45mm Bend Radius, 10m Length - PAFS Series - 7TCA296000R2199 PAFS21/BL/10M

To protect your wiring in continuous-motion applications, opt for this plastic conduit from Adaptaflex. It's flexible and has a high fatigue life, so it bends easily and you can move it around frequently. For safety, the tube is made from polyamide that doesn't burn readily do won't contribute to an electrical fire. This material also resists chemicals and oils, which makes it suitable to use in harsh industrial environments. The 10m conduit is easy to cut to length if you need a shorter cable run.

Features & Benefits

• Halogen-free, so there's no risk of it emitting toxic fumes in the event of a fire
• Suitable for industrial use thanks to a wide operating temperature range of -5°C to +120°C
• Made from electrically insulating polyamide to help prevent electric shocks
• Resists the aging affects of UV light for an extended service life

Applications

• Robotics
• Automated production lines
• Food and beverage industry

What's the diameter of this conduit?

This conduit has an inner diameter of 16.5mm and an outer diameter of 21.2mm.

What sort of profile does this conduit have?

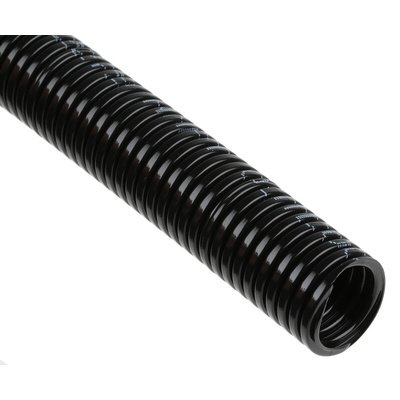

For maximum cable-carrying capacity, this conduit has a corrugated profile with a fine pitch.

Adaptaflex PA/PI Conduit & Adaptalok®/Adaptaseal®/Adaptalok ATS® Fittings

A range of black flexible conduits and fittings to suit a wide variety of uses which include, use where public safety or where the integrity of electronic equipment are of concern or for robotic, rapid or continuous motion applications demanding high fatigue life and extra flexibility, also suited for low temperature environments.,Conduits are manufactured from modified Polyamide and are flame retardant, halogen free, have a low fire hazard (LFH) and offer resistance against chemicals and oils i.e. MEK, petrol, diesel, mineral oils, etc.,Fitting systems compatible with these Adaptaflex conduits are Adaptalok® for an IP66 rating, Adaptaseal® for an IP67 rating and Adaptalok ATS® for an IP68/69K rating.

Non-metallic flexible Systems

Chemical Resistance Chart

Instruction Sheet - Cutting & Assembly Guide

Datasheet - 7TCA296000R2199 PAFS21/BL/10M
