7TCA296000R2226 PAFS28/BL/10M, Adaptaflex Flexible Conduit, 25mm Nominal Diameter, Polyamide, Black, Кабелепровод

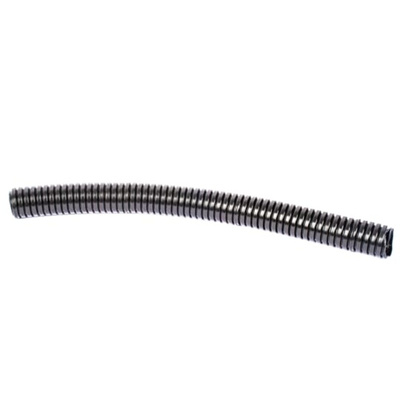

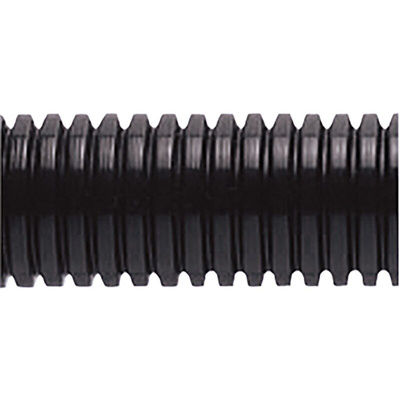

Adaptaflex Conduit, Flexible Plastic, 25mm (Diameter) x 10m (Length) - PAFS Series - 7TCA296000R2226 PAFS28/BL/10M

Improve workplace safety by protecting your wires with this plastic conduit from Adaptaflex. It's made of flame-retardant polyamide that doesn't ignite or spread flames in the event of a fire. The material also resists the chemicals and oils likely to be found in demanding industrial settings. Using the unit with compatible fittings gives you either IP66, IP67 or IP68/69K ratings for varying degrees of protection against dust and water. A minimum bend radius of 50mm makes this a flexible option that's easy to install.

Features & Benefits

• Halogen-free product, so won't release toxic gases in a fire
• 10m length can be used in larger setups or cut to size
• UV-resistant for outdoor use
• High fatigue life and flexibility for demanding applications

Applications

• Commercial premises
• Medical equipment
• Food and beverage processing

What's the operating temperature range of this conduit?

You can use this conduit in temperatures between -5°C to +120°C, so it's suitable for harsh environments.

Why is a low-fire-hazard conduit important?

A low-fire-hazard conduit protects valuable equipment from electrical fires and stops flames from spreading along cables. You should use it in spaces where the safety of the public or electronic applications is essential.

Adaptaflex PA/PI Conduit & Adaptalok®/Adaptaseal®/Adaptalok ATS® Fittings

A range of black flexible conduits and fittings to suit a wide variety of uses which include, use where public safety or where the integrity of electronic equipment are of concern or for robotic, rapid or continuous motion applications demanding high fatigue life and extra flexibility, also suited for low temperature environments.,Conduits are manufactured from modified Polyamide and are flame retardant, halogen free, have a low fire hazard (LFH) and offer resistance against chemicals and oils i.e. MEK, petrol, diesel, mineral oils, etc.,Fitting systems compatible with these Adaptaflex conduits are Adaptalok® for an IP66 rating, Adaptaseal® for an IP67 rating and Adaptalok ATS® for an IP68/69K rating.
