7TCA296000R0585 AL21/M20/A/BL, Adaptaflex Straight, Conduit Fitting, 21mm Nominal Size, M20, Nylon 66, Black

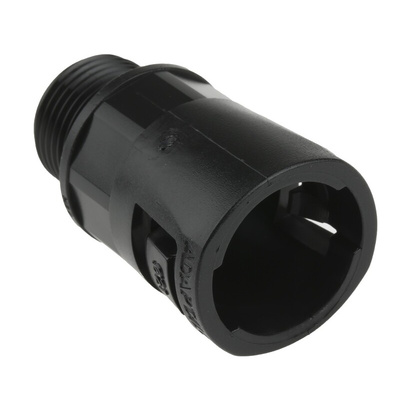

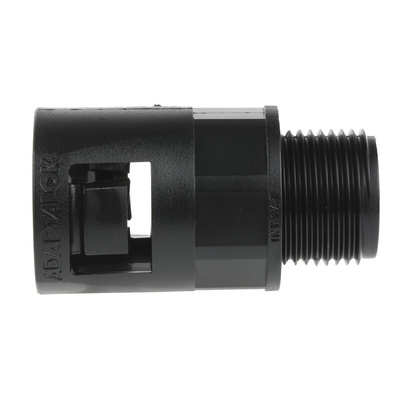

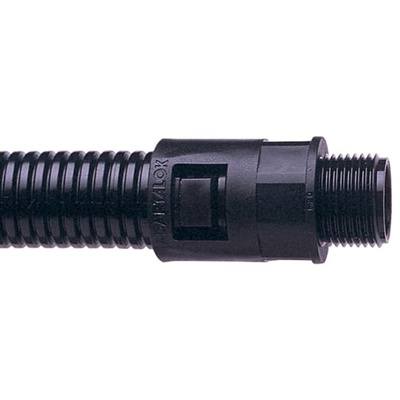

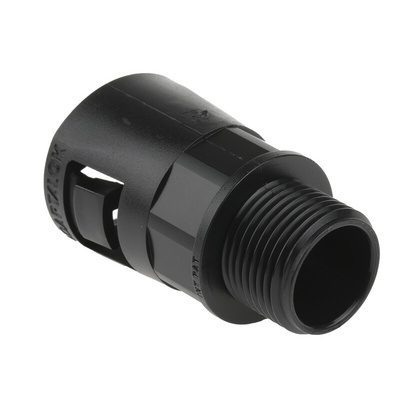

Adaptaflex Straight Conduit Fitting, 21mm Nominal Size, M20 Thread - 7TCA296000R0585 AL21/M20/A/BL

Choose this straight conduit fitting from Adaptaflex to join cable conduits in robotic or continuous-motion applications. It has a high fatigue life and is flexible, so it withstands wear and tear caused by frequent movement. A push-and-twist mounting system makes the fitting quick to install without using tools. Once attached, it's not easily removed to prevent accidental shifting or unauthorised tampering. This fitting is made from modified polyamide that resists chemical corrosion and oils, making it suitable for use in harsh environments.

Features & Benefits

• IP66 (ingress protection) rated seal that's dust-tight and protected against low-pressure water jets from any direction
• Wide operating temperature range of -45°C to +120°C, so suitable for demanding installation conditions
• Low fire hazard, which makes it safe to use in public areas
• Slim design with a nominal size of 20mm to save on installation space

Applications

• Residential and commercial electrical systems
• Industrial lighting and power
• Warehouses

What type of conduit systems is this fitting compatible with?

This fitting is compatible with both fine and coarse pitch corrugated flexible conduit systems.

Is this fitting halogen-free?

Yes, this fitting is halogen-free, which means it doesn't emit toxic fumes in the event of a fire.

Adaptaflex PA/PI Conduit & Adaptalok®/Adaptaseal®/Adaptalok ATS® Fittings

A range of black flexible conduits and fittings to suit a wide variety of uses which include, use where public safety or where the integrity of electronic equipment are of concern or for robotic, rapid or continuous motion applications demanding high fatigue life and extra flexibility, also suited for low temperature environments.,Conduits are manufactured from modified Polyamide and are flame retardant, halogen free, have a low fire hazard (LFH) and offer resistance against chemicals and oils i.e. MEK, petrol, diesel, mineral oils, etc.,Fitting systems compatible with these Adaptaflex conduits are Adaptalok® for an IP66 rating, Adaptaseal® for an IP67 rating and Adaptalok ATS® for an IP68/69K rating.

Adaptalok System accessories

ADAPTALOK Metric Threads Dimensional Data Sheet

0599904_Datasheet_en
