7TCA296020R0149 SP20/M20/A, Adaptaflex Straight, Conduit Fitting, 20mm Nominal Size, M20, Brass, Silver

Adaptaflex Conduit Fitting, M20 Thread Size, IP54 Rating - 7TCA296020R0149 SP20/M20/A

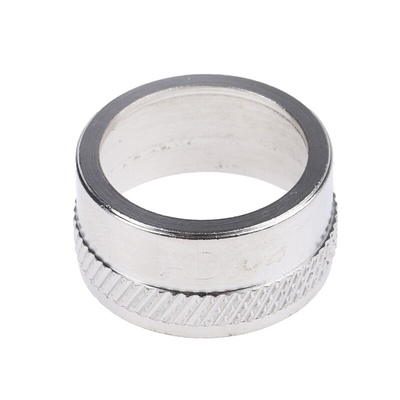

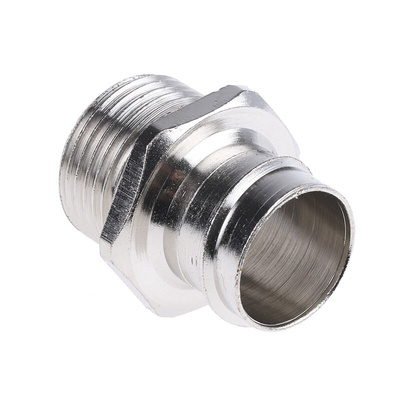

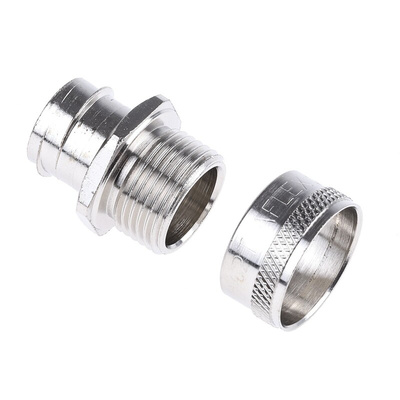

Use this straight fitting from Adaptaflex to fix a flexible conduit to a cable entry point. It's made from brass for mechanical strength and is nickel-plated to improve its resistance to corrosion and chemicals. As it comes in two parts with a screw fitting, it's quick and simple to install on electrical enclosure knockouts. The hexagon collar and ribbed surface on the fitting's body help to improve grip, making it easier to fit while you're out in the field.

Features & Benefits

• Wide operating temperature between -45°C and +250°C for use in harsh conditions
• UV-resistant body means it won't degrade in direct sunlight
• Nominal length of 29mm makes it a compact connection method
• Made from metal, so it's an inherent low fire hazard type of fitting to improve the safety of installations

Applications

• Public and commercial buildings
• Transport networks
• CCTV and security systems
• Lighting equipment

Is this conduit suitable for liquid-resistant conduits?

Yes, this fitting is suitable for liquid-resistant conduits such as steel-coated systems. It has an IP54 rating so helps protect cabling against dust and splashes of water.

Liquid Resistant Covered Steel Flexible Systems - Part Number

Brochure - Electrification Offering Guide

Catalogue - Flexible Cable Protection

Datasheet - 7TCA296020R0149 SP20/M20/A
