Time Electronic 1030 Current & Voltage Calibrator RS Calibration, Калибратор

0611745
Номер производителя: 1030Производитель: Time Electronic
Цена за шт.
148965.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

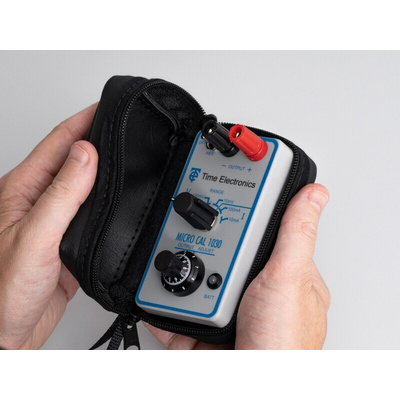

Time Electronic Current and Voltage Calibrator

The Time Electronic current and voltage calibrator is a portable voltage and current calibrator designed for traditional analogue control applications. It is suitable for voltage and current loop signal simulations, as well as, thermocouple simulations. The precision 10-turn dial provides a conventional feel to selecting the required output with a setting resolution of 1 part in a 1000 (0.1%). The compact (115 x 62 x 55mm) and durable design make it ideal for use in both the lab and field applications. Being both cost-effective and simple operation, it is a popular instrument used in various applications across industries.

Features and Benefits

Measuring voltage ranges from
10mV, 100mV, 1V ranges
Measuring current ranges are 10mA, 100mA ranges
Accuracy 0.1%
Linearity 0.15%
Up to 8V output (using 1kΩ resistor)
Precision 10-turn dial
60 hours typical battery life
Battery level indicator
Supplied with carry case

Applications

Electrical servicing and maintenance
Laboratories
Electronic servicing and maintenance
Industrial automation

Certifications

ANSI/ESD S20.20: 2014
BS EN 61340-5-1: 2007

Техническая спецификация
pdf1030 MicroCal Technical Manual
pdf1030 MicroCal Voltage & Current Source Data Sheet
Абсолютное максимальное измеряемое напряжение:
Абсолютный максимальный измеряемый ток:
100мА
Вес:
100гр
Высота:
31мм
Длина:
190мм
Источник питания:
Батарея
Калибровка:
RSCAL
Модель р:
1030
Наилучшая точность:
±0.2 %
Рабочая температура - максимальная:
+40°C
Рабочая температура - минимальная:
0°C
Размеры:
190 x 39 x 31мм
Тип батареи:
LR44
Ширина:
39мм
