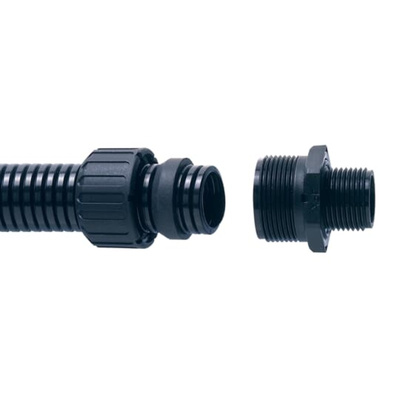

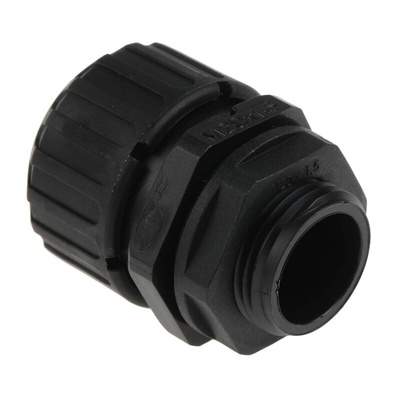

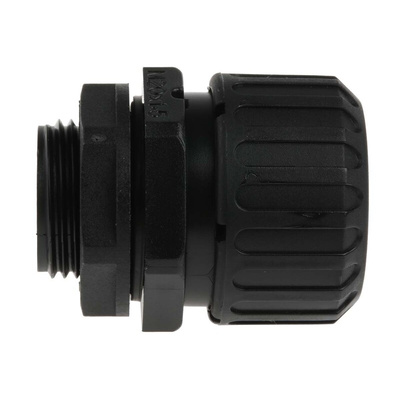

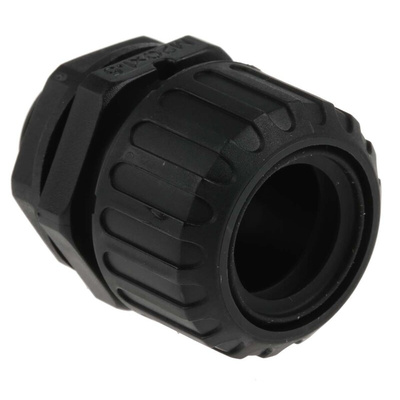

ASF21/M20/A, Adaptaflex Straight, Conduit Fitting, 21mm Nominal Size, M20, Nylon 66, Black

Adaptaflex Conduit Fitting, Liquid-Tight, Fixed External Thread - Adaptaseal ASF Series - ASF21/M20/A

Get your automated equipment ready to spring to action with this conduit fitting from Adaptaflex. It's used to securely connect lengths of conduit, which helps to ensure your data and power cables stay damage-free and in tip-top shape. Thanks to the unit's liquid-tight seal, you can rest assured your wires are protected against moisture. This gives you the benefit of reduced maintenance and boosts plant productivity. A wear-resistant PA plastic construction means it holds its own in mobile applications. As this plastic is also corrosion-resistant it's a practical choice for humid settings. For convenience, this fitting is supplied with a lock nut, so it's ready to install.

Features & Benefits

• Low fire hazard, for workplace safety
• Suitable to use in harsh locations, thanks to its wide static operating temperature range between -40°C and +120°C
• Straight shape for uncomplicated assembly of plastic conduits
• Halogen-free, so doesn't give off toxic fumes when it's heated

Applications

• Food and beverage manufacturing
• Mining and minerals processing
• Railway equipment
• Transportation industry

Can I use this fitting with coarse-pitch conduits?

Yes, this versatile accessory is compatible with both coarse-pitch and fine-pitch corrugated flexible conduits.

Supplied with
type":"Supplied with",

Locknut

Adaptaflex PA/PI Conduit & Adaptalok®/Adaptaseal®/Adaptalok ATS® Fittings

A range of black flexible conduits and fittings to suit a wide variety of uses which include, use where public safety or where the integrity of electronic equipment are of concern or for robotic, rapid or continuous motion applications demanding high fatigue life and extra flexibility, also suited for low temperature environments.,Conduits are manufactured from modified Polyamide and are flame retardant, halogen free, have a low fire hazard (LFH) and offer resistance against chemicals and oils i.e. MEK, petrol, diesel, mineral oils, etc.,Fitting systems compatible with these Adaptaflex conduits are Adaptalok® for an IP66 rating, Adaptaseal® for an IP67 rating and Adaptalok ATS® for an IP68/69K rating.

Adaptaseal system - Fittings and accessories

Catalogue - Flexible Conduit Systems

Datasheet - ASF21/M20/A
