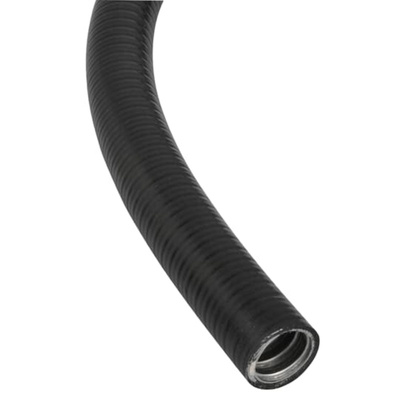

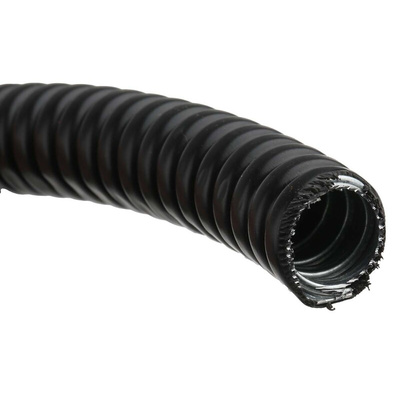

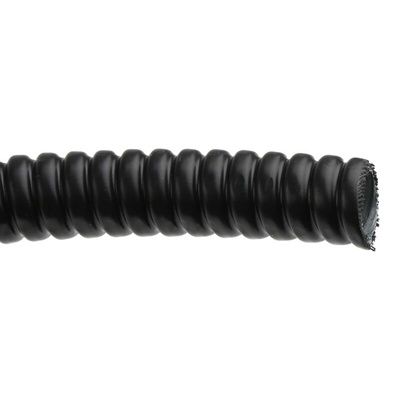

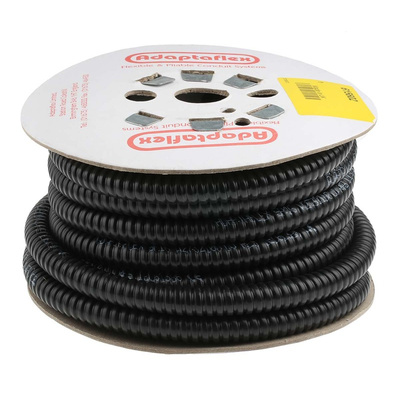

7TCA296020R0077 SP16/BL/10M, Adaptaflex Flexible Conduit, 16mm Nominal Diameter, Galvanised Steel, Black, Кабелепровод

Adaptaflex Conduit, 13mm Inside Diameter, 35mm Minimum Bend Radius - SP Series - 7TCA296020R0077 SP16/BL/10M

Struggling to fit cable protection in awkward spaces? This conduit from Adaptaflex can bend into shape. It's built with a flexible galvanised steel core, giving it a minimum bend radius of 35mm, meaning you'll have no trouble working it around obstacles or using it with machine tools. An outer diameter of 17mm means it's easy to route through narrow channels under floors. The rugged PVC cover boosts durability and helps it achieve a tensile strength between 1,000 and 1,450N, ensuring it can deal with the push and pull of complex installations.

Features & Benefits

• Resistant to UV rays, so it's durable in outdoor applications
• IP54 rating indicates protection against dust and water splashes after connection
• Flame-retardant material means vertical burning stops inside 10 seconds
• High thermal performance gives it an operating temperature range from -15°C to +70°C

Applications

• Machine manufacturing
• Data centres
• HVAC systems
• Industrial automation

What fittings can I use with this conduit?

This conduit is comptaible with standard M16 threads, enabling you to use straight and swivel fittings. It also works with M-type fittings from the SP series (400-8165), to increase protection to an IP65 rating.
