7TCA296020R0178 SP25/BL/10M, Adaptaflex Flexible Conduit, 25mm Nominal Diameter, Galvanised Steel, Black, Кабелепровод

Standard & Low Fire Hazard Conduit

Two types of flexible liquid resistant conduits from Adaptaflex, the standard version is a helically wound galvanised steel strip with a black PVC cover whilst the LFH (Low Fire Hazard) type is Polyolefin covered which has halogen free, flame retardant & low toxicity properties which complement Fire Performance cables where public safety is of concern e.g. Hospitals, Shopping centres, Underground Railways etc.

IP54 or IP65 (dependant on Fitting)
-15°C to +70°C operating temperature, -25°C to +90°C (LFH type)
Non Flame propagating to EN50086
UV resistant
Compression strength 1500N/50mm
Halogen Free (LFH type only)
Low Smoke and Fume (LFH type only)

Note

The conduit is measured under tension and may be subject to variations in length when relaxed.

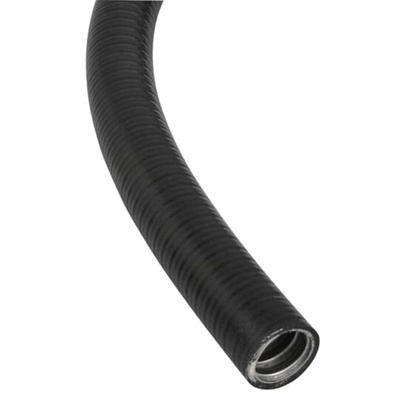

Adaptaflex PVC Coated Flexible Steel Conduit, 26mm OD, 10m Length - SP Series - 7TCA296020R0178 SP25/BL/10M

This cable conduit from Adaptaflex helps to make routing and installing electrical wire bundles easier. You can use it underground or in wall cavities to keep cables out of sight and protected. The housing features a flexible steel construction that resists crushing forces and abrasion, so it's compatible with harsh working conditions. For ease of use, the conduit is flexible and bends around corners. A PVC coating provides protection against the ageing effects of UV light, which extends the longevity of this product.

Features & Benefits

• Electrically insulated for safety during installation and handling
• Galvanised for corrosion resistance in moist or humid conditions
• Wide operating temperature range of -15°C to +70°C, so suitable for demanding environments
• Low flammability for safety in the event of a fire

Applications

• Automated manufacturing
• Offices and residential buildings
• Construction industry
• Medical and pharmaceutical industries

How long is this conduit?

This conduit is 10m in length. If you need a longer cable run, the tubes are easily joined together using a conduit fitting. You can also cut this conduit if you need a shorter length.
