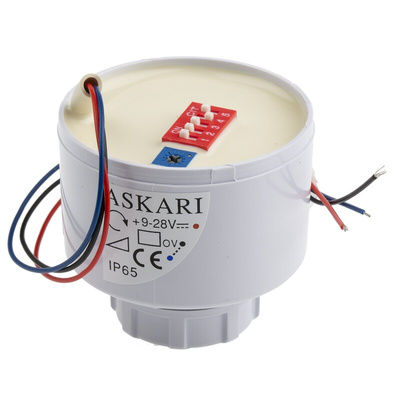

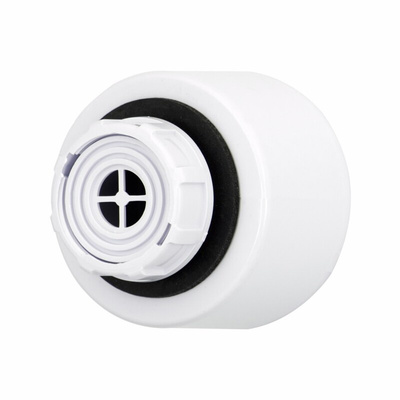

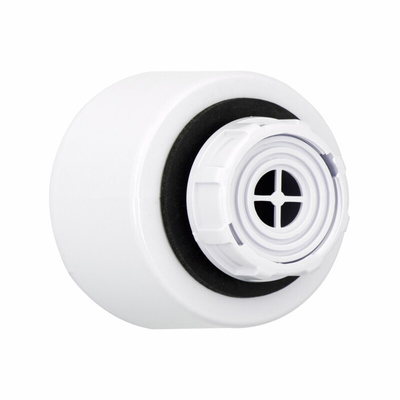

AP/W/SWITCH, Eaton Panel Mount Electronic Sounder, 9 → 28 V dc, 92dB at 1 m, IP65, DC, 32-Tone

Fulleon Askari Panel Sounder - AP/W/SWITCH

Fulleon's panel sounder has been created and designed to fit through the fascials of control panels and equipment housings, all achievable because of the sounders compact size. Maximum audibility and simple installation is accomplished through the single nut fixing, this ease of use matched with the high IP rating makes the Askari panel sounder from Fulleon suitable for a multitude of process and industrial environments.

Features & Benefits

• Features an IP rating of IP65, this means that the electronic sounder has full protection against dust and other particles. The IP65 rating also means that the sounder has protection against low-pressure jets or direct water coming from any angle
• White in colour, the sounder has an aesthetically pleasing finish
• Tone select switch and volume control options
• Easily accommodated and simple to install into control equipment enclosures
• A smooth DC power supply is required for the unit (accepts most common DC supplies)
• Optional internal or external use
• Dedicated panel fixing
• 32 tones, the tones are compatible with Roshni, Squashni and Flashni sounders
• Users will commonly find this type of electronic sounder within industrial, lighting and security applications
• Has a second tone for a two-stage alarm
• Through panel fixing
• ABS construction - Acrylonitrile Butadiene Styrene. This type of plastic has a strong resistance to corrosive chemicals and physical impacts
• 92dBA sound output at 24VDC
• Automatic synchronisation
• Features a current of 18mA and has a voltage rating of 9VDC to 28VDC

Eaton White 32-Tone Electronic Sounder, 9 to 28V DC, 92dB - Askari Panel Series - AP/W/SWITCH

Looking for an audible alarm you can set to issue different alerts? Install this white electronic sounder from Eaton to enhance safety in your workplace. You can choose from 32 tones at volumes up to 100dB (decibels) to make people aware of different hazards or status changes. At 50mm in diameter, this component is compact and easy to fit on control panels and equipment housing. It's ideal for large open areas and noisy environments like construction sites.

• Single nut fixing for quick and easy installation at the desired height for maximum audibility
• IP65 (ingress protection) rating indicates protection from dust and low-pressure water jets

Can I use this sounder in harsh conditions?

Yes – this sounder operates in temperatures ranging from -25°C to +70°C so it's suitable for use in heavy-duty indoor and outdoor settings. The housing is made from rugged ABS (acrylonitrile butadiene styrene), which is resistant to corrosives and chemicals.

Can I change the volume on this electronic sounder?

Yes. This electronic sounder has both tone-select and volume-control options.

Note

Eaton formerly known as Fulleon
