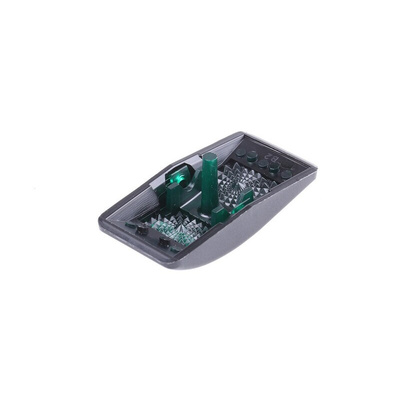

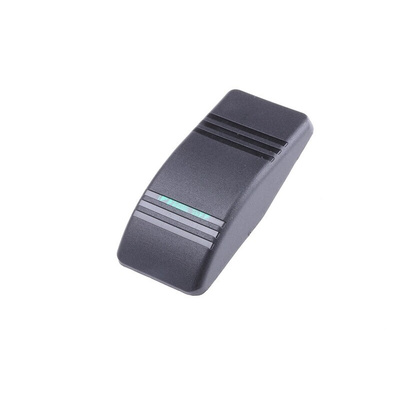

RCV-46400099, Carlingswitch, Rocker Switch Lens, Actuator, For Use With Rocker Switch

Coloured Rocker Switches, Contura Series

IP68 rating if used without panel assembly system
These switches are terminated with 6.35mm fast-on terminals and are supplied with a panel-sealing gasket
Illuminated versions are available with a choice of 250V neon or red or green LEDs with integral resistors for 12V operation
Also available is a bezeled panel assembly system which permits sub-assemblies to be snapped into place (system does not have IP68 rating)
Contact resistance: 10mΩ
Contact material: Silver
Panel cut-out: 21.08 x 36.83

Note

Switch supplied without actuator, see stk. no 665-528 etc typically
The black/green lens actuator 665-556 is not suitable for use with neon or red LED illuminated switches

Note

*This is not suitable for use with neon or red led illuminated switches.

Approvals

UL; CSA; VDE; BEAB; DEMKO; SEMKO; NEMKO; FIMKO

Datasheet
