SRL5KS2850, Lorlin Key Switch, DP-CO, 1 A @ 24V ac dc / 115V ac 2-Way Common-Key, Выключатель с ключом

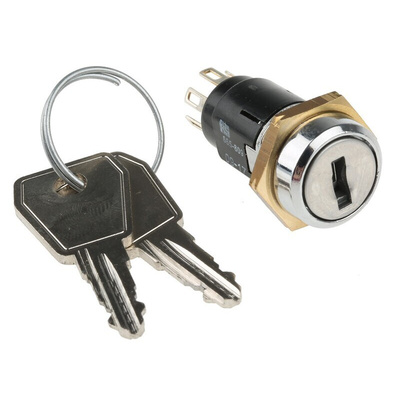

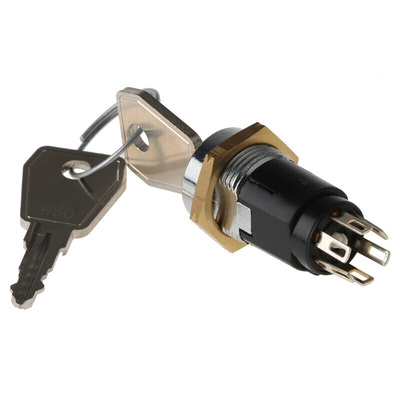

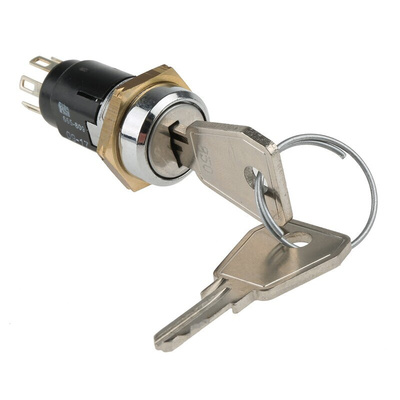

Lorlin Key Switch

The Lorlin key switch is a miniature, key-operated lock switch. It is suitable for many low voltage applications. The spare keys are available for common profiles, but not for random profiles, for security reasons. It has a double pole and can easily be assembled through the front of the equipment panel.

Features and Benefits

Up to 200 key combinations
Keys are double entry (they can be inserted into the lock either way up)
Occupies small panel area
Rear projection less than 30mm from panel
Contact configuration is DP-CO
Key trapping
Contact current rating of 1 A @ 24V ac dc / 115V ac
Solder terminal
Case material is glass fibre reinforced PA
Depth behind panel is 22.4mm
Key index angle is 60°
Contact material is silver plated brass
Mechanical life is 10,000 operations
Operating temperature ranging between -20°C and 65°C

Applications

Control panels
Alarms
Lighting controls

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

SRL5-Series Lockswitches: Data & Drawings
