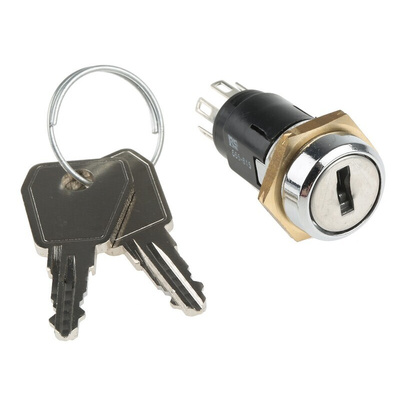

Lorlin Key Switch
The Lorlin key switch has a double pole changeover(DP-CO) contact configuration. It is a miniature, 2-position, key switch with silver-plated brass contacts It can be easily installed into a panel from the front. This key switch also benefits from a small depth behind the panel of less than 30mm. The common key type makes it easy to obtain spare keys. It also has double entries with withdrawal positions at 1 and 3.
The switch has contact current rating of 1 A @ 24V ac dc / 115V ac.
Features and Benefits
Solder terminal
Case material is glass-fibre reinforced PA
Depth behind panel is 22.4mm
Key index angle is 60°
Contact material is silver-plated brass
Operating temperature ranges between -20°C and 65°C
Mechanical life of 10,000 operations
Applications
Panel builders
Control panels
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
