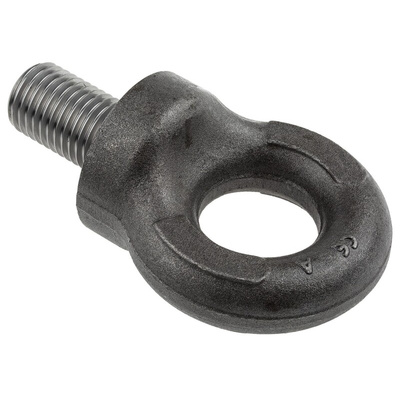

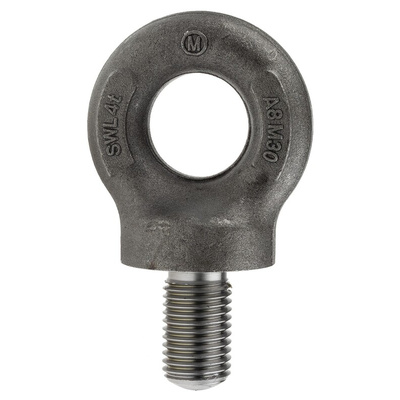

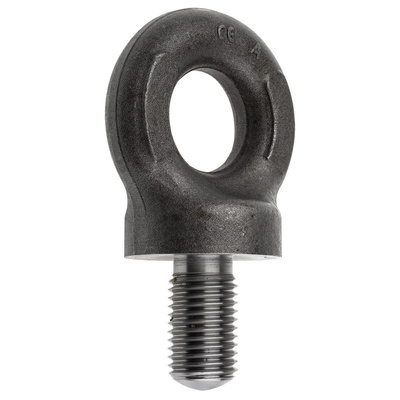

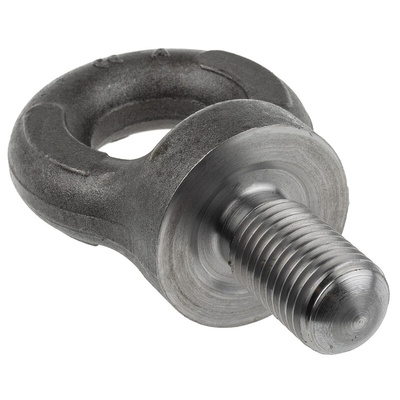

RS PRO Carbon Steel Eye Bolt, M30 Thread, 51mm Thread Length, 51mm Internal Eye Diameter, 96mm Outer Eye Diameter, 4t, Рым-болт

0673686
Производитель: RS PRO
Цена за шт.
10845.90 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO Eye Bolts

These Eye Bolts from our own RS PRO brand are intended for linear pulling loads in the direction of the thread.

Features and Benefits

•Galvanised steel construction
•Easy to inspect for damage
•Shock absorbing
•High resistance to abrasion
•Fatigue rated at 1 – times the working load limit at 20 000 cycles
•UNC (unified coarse pitch) thread

Applications

These Eye Bolts are suitable for wide variety of applications such as tensioning wires, securing loads and lifting applications.

Not intended for use where the load is perpendicular to the thread. This is because in these instances the bolt could unscrew and move, or it could be twisted and break.

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

When lifting, two or more eyebolts should be used. Safe working load detailed in 'dimensions' table;
Not intended for use where the load is perpendicular to the thread. This is because in these instances the bolt could unscrew and move, or it could be twisted and break.

Техническая спецификация
pdfRS PRO Datasheet
Внешний диаметр:
96мм
Диаметр проушины:
51мм
Длина резьбы:
51мм
Материал:
Углеродистая сталь
Предел рабочей нагрузки:
4t
Размер резьбы:
M30
Тип:
Eye Bolt
