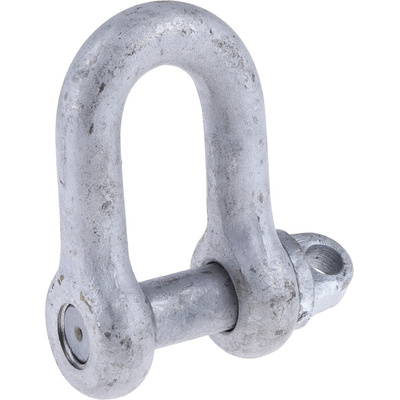

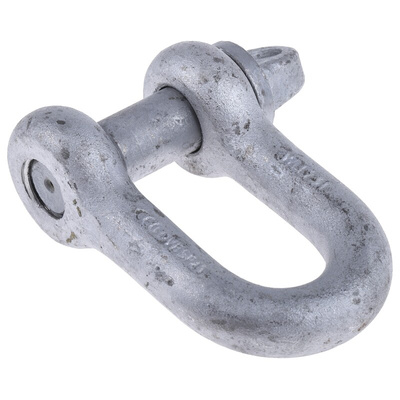

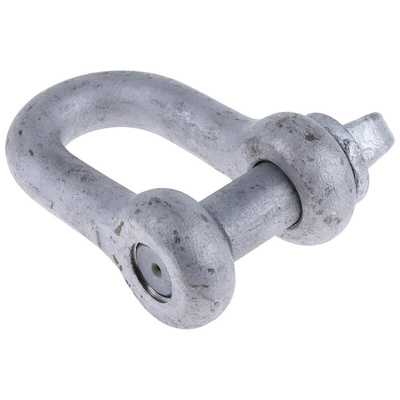

RS PRO D-Shackle, Stainless Steel, 2.5t, Соединительная скоба

Small Dee Shackles

High tensile galvanised steel shackles with screw pin, to BS3032: 1987. Used for lifting or for securing loads or plant.

Note

Stated safe working loads are in tonnes.

RS PRO D-Shackle/Galvanised Plated

The usability of Shackles, also referred to as gyve reaches hundreds of years. Shackles built their reputation as the simple, but solid construction providing the most cost-effective method of attaching the anchor with chain. The primary purpose is lifting heavy objects and equipment. Basic models are available for domestic and light use, such as for luggage and tow ropes. The commercial site is using the Shackles to cope with more extreme load capacities and atmospheric conditions. Each Shackle is made of durable and high-quality material, ensuring a perfect connection to the sling and therefore providing excellent reliability. For Shackles that are suitable for lifting, we are strongly recommending checking a weight limit guidance. If using in extreme temperatures (more than + 200°C or - 40°C) always consult this with either a manufacturer or distributor.

The Shackle consists of 2 parts, which is the body and the pin (or bolt). The body can have different shapes. Therefore, you can see on the market Bow Shackles, D Shackles, Green Pin Shackles, Safety Pin Shakes, Screw Pink Shackles, Stainless-Steel and Pilling Shackles. Another way of identifying Shackles are by pin types, such as round pin and cotter (class 1), screw (class 2) and bolt, nut and cotter pin (class 3). We are proudly introducing our won branded RS PRO D Shackle recognisable as they are narrower than a Bow Shackle and, in most cases, they have a threaded pin or pin close. The purpose of their existence is to serve for an in-line load, which explains why the loop is so small. The D-Shackle is galvanised plated meaning this is a superficial protection for indoor and outdoor. This D-Shackle (known as Chain Shackle) with 12.7 mm diameter, withstands of the 1-ton load comply to BS 3032:1958 standards. The body comes with a screw pin to serve as security to your loads and plant.

Features and Benefits

• Galvanised plated Shackle with crew pin


• The D Shackle comes with 3-year Warranty


• Pin diameter of 15.9 mm


• Jaw width of 22.2 mm


• This Chain Shackle deals well with different weather conditions


• Ideal for securing moderate to heavy loads or plant

Application

Shackles are used in conjunction with slings, rope and various lifting equipment and are a vital component in the following areas:

• Wire Rope Slings


• Moderate to heavy lifting loads


• Industrial crane rigging onboard large ships


• Commonly used in personal safety gear including climbing and mountaineering harnesses


• Vehicle recovery

Frequently asked questions

What are the widely accepted codes of practice when dealing with Shackles?

• Always perform regular check inspection


• Pay attention to the manufacturer or distributor specifications


• Use the correct size of the Shackle for the hook or sling straps


• Make sure to connect multiple sling legs to the body of the Shackle, and never to the pin itself


• Never use the Shackle to lift if it does not meet the required safety standards or shows signs of excessive wear

Why RS PRO?

RS Pro is our family brand and brings you a wide range of high-quality and high-value products to support your project. Trusted by engineers all over the world, every part of every RS PRO product is always rigorously tested against demanding industry standards. We are only giving the RS PRO seal of approval if we're confident of their exceptional quality, which means you can be convinced too.

Note

Avoid exceeding 120 degrees for the angle when there is a requirement to use multiple-leg slings.
