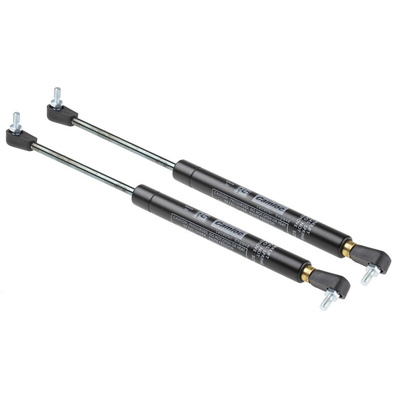

SWV6050500035, Camloc Gas Springs Camloc Steel Gas Strut, with Ball & Socket Joint, End Joint, 240mm Extended Length, 100mm Stroke Length, Газовая пружина

Camloc Gas Springs, Steel Gas Strut, 6mm Rod, 100mm Stroke Length, Swift & Sure, SWV6050500035

This gas strut, by Camloc Gas Springs, is a versatile and reliable solution for various applications in automation, electronics, and mechanical systems. This self-contained, maintenance-free hydro-pneumatic ram boasts a unique design, ensuring controlled movement with a compression spring and a small change in force during extension. This Camloc gas strut is equipped with a ball & socket joint, nylon, and steel end connectors, providing flexibility and durability. With a stroke length of 100mm, it delivers precise performance, making it an ideal choice for applications like access panels, lids, covers, guards, bonnets, and hatch covers. The rod diameter is 6mm and the tube diameter is 15mm, making it suitable for a wide range of applications.

Features & Benefits

• Tailored to your application needs
• A self-contained unit requiring no regular maintenance
• Offers easy positional control for enhanced safety
• Customisable with fixed or adjust-yourself options
• Over 2,500 different combinations available
• Steel construction ensures durability
• Options include ball & socket joint, nylon and steel
• Ranges from 50N minimum to 400N maximum
• Controlled rate of movement with oil damping

Applications

• Ideal for automation and control systems
• Well-suited for various mechanical applications
• Perfect for use in electronic equipment
• Offers reliable support in fluid power systems
• Meets PPE and site safety requirements

How does this gas strut ensure safety in industrial applications?

This gas strut features Swift & Sure technology, providing a controlled rate of movement and oil damping for a secure end of travel, protecting hinges and mounts.

What sets this apart from other gas springs in the market?

Unlike traditional gas springs, this gas strut's design includes a ball & socket joint ensuring enhanced flexibility and durability in varied applications.

Is this suitable for use in electronic equipment?

This gas strut is an excellent choice for electronic systems offering reliable support and controlled movement.

Supplied with
type":"Supplied with",

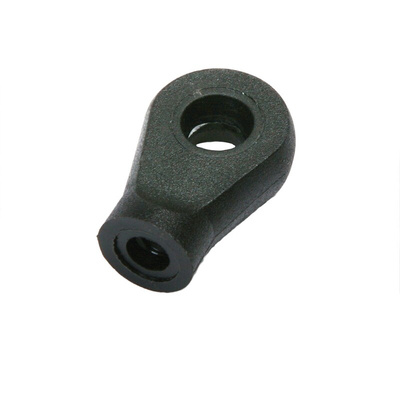

Supplied with 2 x Swift & Sure Vari-Lift Gas Struts, 4 x Pre-fitted ball joint end fittings, 4 x optional eye end fittings, 1 x Allen Key for de-gassing 1 x instruction leaflet

Swift & Sure Lift Gas Spring - Datasheet

Camloc Instruction Leaflet

Brochure - Industrial Gas Spring and Damper Solutions

Brochure - Camloc Gas Springs
