SWY8060600055, Camloc Gas Springs Camloc Steel Gas Strut, with Ball & Socket Joint, End Joint, 264mm Extended Length, 100mm Stroke Length, Газовая пружина

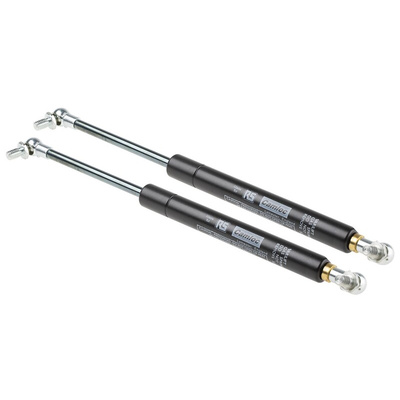

Camloc Gas Springs, Steel Gas Strut with Ball & Socket Joint, 100mm Stroke Length, Swift & Sure, SWY8060600055

This Swift and Sure steel gas strut with ball & socket joint features a sturdy steel cylinder material and an end connector made of both nylon and steel. With a maximum force of 400N and a minimum force of 50N, it provides a controlled rate of movement. The rod diameter is 6mm, and it has a stroke length of 150mm. The tube diameter is 15mm. This is designed to provide reliable performance and maintenance-free operation, making it ideal for a wide range of applications.

Features & Benefits

• It can be customised for your specific application ensuring optimal performance and functionality
• Entirely self-contained, eliminating the need for regular maintenance and reducing downtime

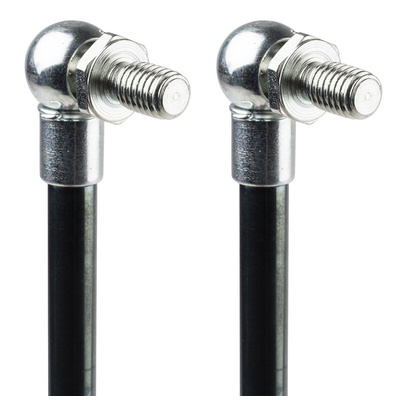

• With a ball and socket joint and an end joint allows for easy positional control, ensuring precise movement and alignment
• The force of this gas strut can be adjusted to meet specific needs providing flexibility and versatility
• Made of high-quality materials and designed for durability offering reliable performance and a long service life

Applications

• Ideal for automation, electronics and mechanical applications
• Suitable for use on access panels, lids, covers, guards, bonnets and hatch covers in various industries
• Commonly used in settings requiring controlled movement and constant force

How does the Vari-Lift™ Valve work?

The Vari-Lift™ Valve in Swift & Sure gas strut is pre-fitted and allows precise degassing for force adjustment. Using the supplied allen key, users can release small amounts of gas until the desired action is achieved.

Are there specific safety measures for installation?

Installation is straightforward, and this gas strut is designed to ensure safety. Always mount the strut with the rod down and the Vari-Lift™ Valve uppermost.

Can this be used in industrial machinery?

It is well-suited for automation and mechanical applications, providing controlled movement and constant force.

How is the force adjusted?

The force is adjusted using the Vari-Lift™ Valve technology. The supplied allen key allows controlled degassing until the desired force is achieved.

Supplied with
type":"Supplied with",

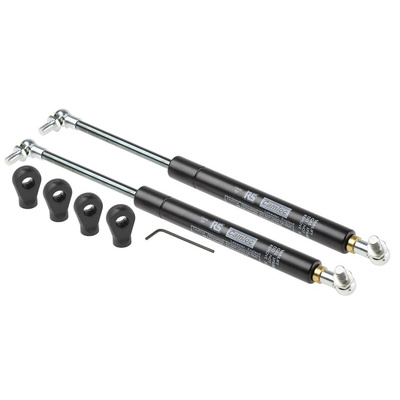

Supplied with 2 x Swift & Sure Vari-Lift Gas Struts, 4 x Pre-fitted ball joint end fittings, 4 x optional eye end fittings, 1 x Allen Key for de-gassing 1 x instruction leaflet
