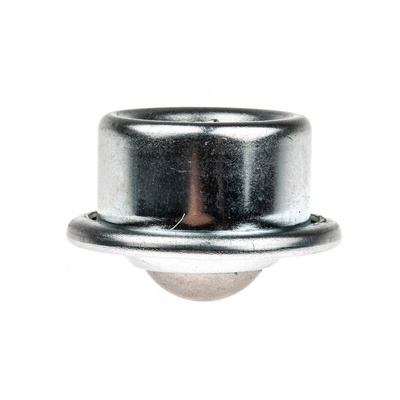

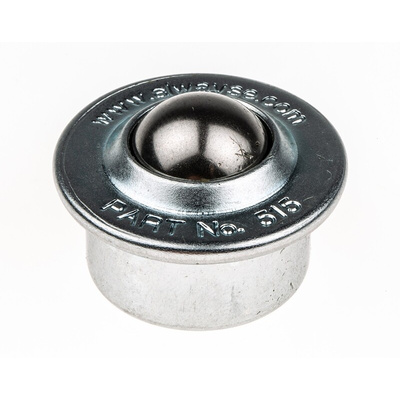

ALWAYSE Bolt Fixing Ball Transfer Unit
The ALWAYSE circular flange mount bolt fixing ball transfer unit is a highly efficient device with a maximum load capacity is 45kg. This unit is used to move or transfer loads in all direction with a maximum speed of 1m/s. It is available in a wide choice of load capacities, sizes and fixings.
Fixing clip:
A fixing clip helps to fix from either the top side of a ball deck or the underside. It is suitable for deck thicknesses up to 4mm.
Features and Benefits
Ball diameter is 15mm
Case material is steel
Felt or plastic seal (except 15mm)
Flange diameter is 24mm
Flange type fitting
Load ball material is steel with zinc plated
Main bearing cup toughened steel
Self-cleaning hole
Operating temperature ranging between -30°C and 70°C
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
