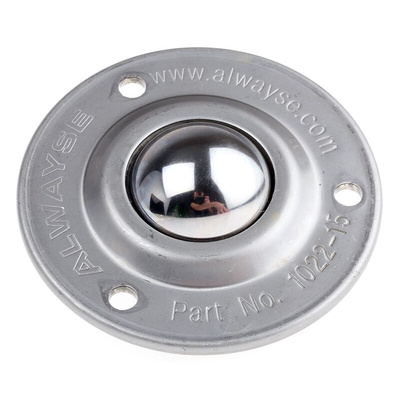

ALWAYSE Bolt Fixing Ball Transfer Unit
The ALWAYSE 3-hole flange mount bolt fixing ball transfer unit is a highly efficient device with a maximum load capacity is 125kg. This unit is used to move or transfer loads in all direction with a maximum speed of 1m/s. It is available in a wide choice of load capacities, sizes and fixings.
Features and Benefits
Ball diameter is 32mm
Flange diameter is 73.7mm
Case material is stainless steel
Flange type fitting
3%-5% of load force required to start motion
2% of load force required to maintain motion
Load ball material is stainless steel with zinc plated
Self-cleaning hole in base of bearing cup
Operating temperature ranging between -30°C and 70°C
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
