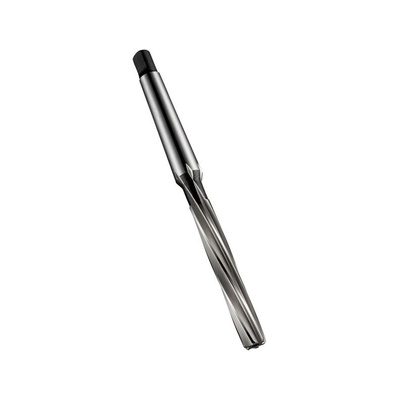

B101 10MM, Dormer Morse Taper Shank Reamer Bit, 10mm Diameter, Spiral Flute, 146 mm Overall, Машинная развертка

HSS Morse Taper Shank Machine Reamer (B101)

HSS Spiral Flute straight Morse Taper shank machine reamer for opening and finishing existing holes to H7 tolerance
Suitable most ferrous and non-ferrous materials

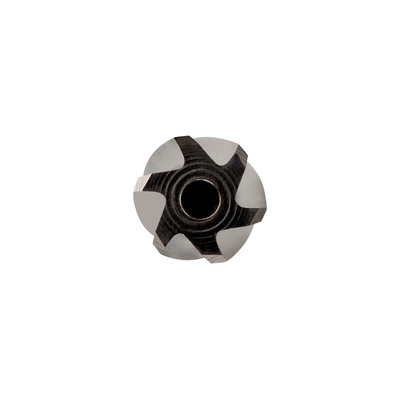

7° helix, Left Hand Spiral for excellent surface finish
Manufactured to BS328 standards

Note

Only to be used for through-hole machining

Dormer Reamer Bit, H7 Tolerance, HSS Material - B101 Series - B101 10MM

Round out the diameter of a pre-drilled hole with this reamer bit from Dormer. It features left-hand spiral flutes along its body that carefully remove bits and pieces from inside the hole to ensure a smooth finish. You can use this piece of gear to open the gap to a precise tolerance of H7. Its tough HSS body delivers thermal resistance to help it beat the heat in demanding applications.

Features & Benefits

• Overall dimensions of 146 (L) x 10mm (diameter) to fit medium-sized gaps
• Compatible with most ferrous and non-ferrous materials for versatility

Applications

• Metalworking
• Medical and pharmaceutical industry
• Aerospace engineering

How do I fix this bit to my tool?

Simply attach the end to the Morse taper sleeve of your rotating device, and you're good to go.

Standards

ISO/BS328

B101 Reamer Specification Data Sheet
