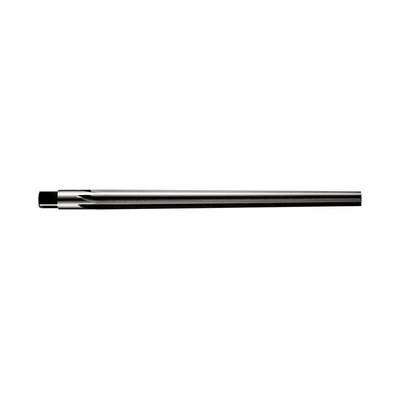

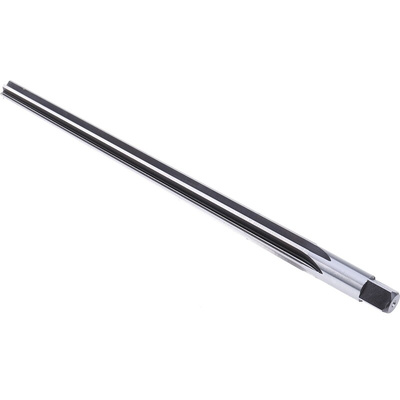

B903 8MM, Dormer 8mm x 180 mm HSS Hand Taper Pin Reamer Hand Reamer, Ручная развертка

HSS Straight Shank Hand Taper Pin Reamer

HSS straight Flute hand Taper Pin reamer for opening out parallel holes and finishing pre-formed tapered holes.

Use on most ferrous and non-ferrous metals
Metric reamers to ISO/BS328/DIN9 standards have a 1-in-50 taper on diameter
Imperial reamers to BS328 standard have a 1-in-48 taper on diameter

Dormer Hand Reamer, Tapered Flute Type, 8mm Clamping Width - B903 Series - B903 8MM

To create pinholes in the blink of an eye, pick up this hand reamer from Dormer. It connects to your handheld power tool to make quick work out of precision drilling. The unit's 1:50 taper ratio means it creates self-aligning holes, making it a breeze to position pins properly. For versatility, the component is ideal for machining steels, aluminiums and coppers, as well as malleable cast iron.

Features & Benefits

• Right-hand rotation cutting for logical clockwise drilling action
• Light weight of 72.5g for easy handling
• Bright steam-tempered finish minimises corrosion for long-lasting performance

Applications

• Automotive manufacturing
• DIY projects
• Carpentry workshops
• Kitchen installations

What does HSS stand for?

HSS stands for high-speed steel. It's chosen for its ability to withstand the heat generated by power tools.

Standards

ISO/BS328/DIN9

B903 Reamer Specification Data Sheet
