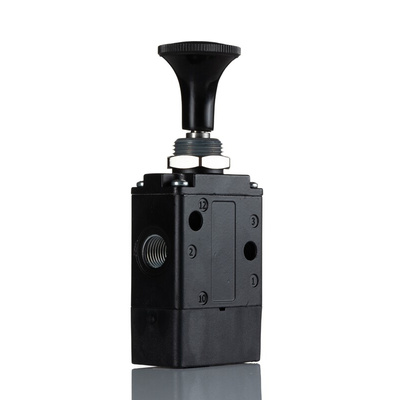

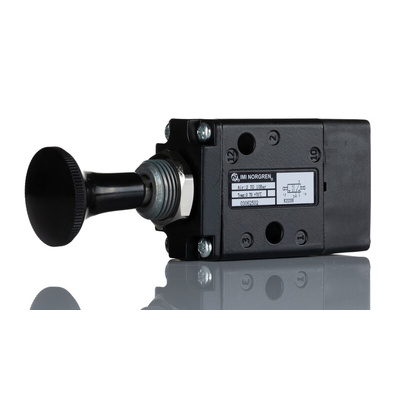

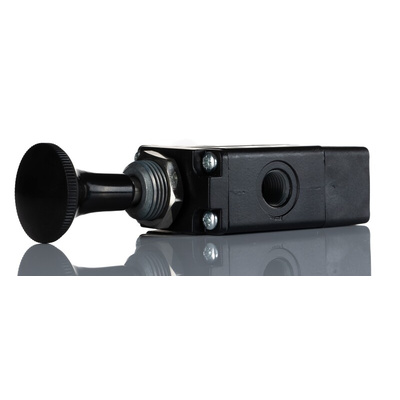

03062502, Norgren Knob 3/2 Pneumatic Manual Control Valve 03 Series, G 1/4, 1/4in, III B, Клапан

0722362
Номер производителя: 03062502Производитель: Norgren
Цена за шт.
51351.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

IMI Norgren Pneumatic Manual Control Valve, Zinc Alloy Body, 0.9 to 10 Bar Operating Pressure - 03 Series - 03062502

For easy control over airflow in your pneumatic system, bag yourself this manual valve from IMI Norgren. Thanks to an ergonomic knob-type actuator, it's a quick and comfortable way to streamline your processes. The 3/2 function means it can direct compressed gases through three ports in two directions for efficient multiway operation. A standardised G1/4 thread connector is widely compatible, making it easy to integrate this unit into your equipment. The screw-in method makes it a breeze to set up.

Features & Benefits

• Wide operating temperature between 0°C and +70°C for use in challenging conditions
• Maximum flow rate of 965L/min means it's suitable for high-flow operations
• Zinc alloy housing is corrosion-resistant for a long service life
• Low 370g weight means it won't strain your system

Applications

• Food and beverage processing
• Printing presses
• Medical technology

Does this valve work with larger cylinders?

Yes – you can use this hardy component with cylinders up to 50 bore, so it's a reliable choice for large machinery.

Push Button & Selector - Norgren

3 and 5 port valves for for multi-directional flow and dual supply applications. Suitable for use with cylinders up to 50mm bore. High flow capacity with a wide range of operators.,Manufactured with lightweight corrosion resistant materials.

Техническая спецификация
pdfSuper X Inline Spool Valve Data Sheet
Давление - максимальное рабочее:
10 бар
Количество позиций:
2
Количество портов:
3
Корпус - материал:
Цинковый сплав
Максимальный рейтинг расхода:
965Л/мин
Механизм управления:
Ручка
Подключение резьбы порта:
G 1/4
Производитель - серия:
03
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
0°C
Размер резьбы:
1/4in
Стандартная резьба:
G
Функция:
3/2
Цвет кнопки управления/переключателя:
Черный
