03040202, Norgren Roller 3/2 Pneumatic Manual Control Valve 03 Series, G 1/8, 1/8in, Клапан

IMI Norgren 3/2 Pneumatic Manual Control Valve, 31N Operating Force, 10 Bar Maximum Operating Pressure - 03 Series - 03040202

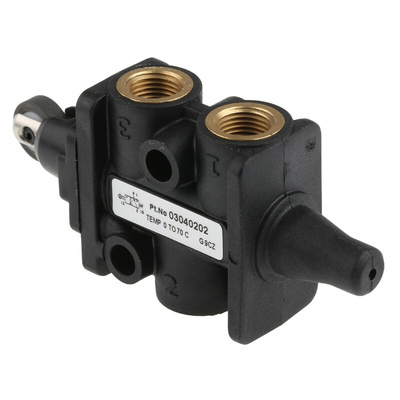

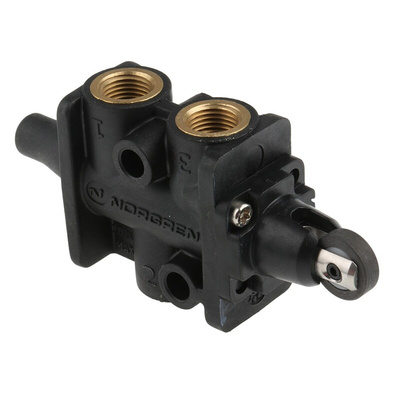

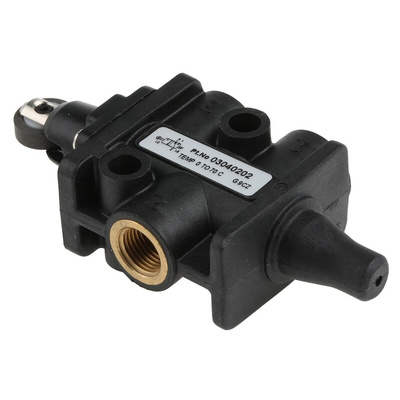

This manual control valve from IMI Norgren lets you direct airflow in your pneumatic system. It has an integrated roller-plunger limit switch that allows the flow of air when it's depressed by an object. This switch is spring-loaded so it returns to its original position once released. Thanks to a 31N operating force, it's sensitive to small movements, making it suitable for high-speed applications. The unit's robust polyamide body can withstand mechanical impact and abrasion, meaning it's a good choice for use in industrial environments.

Features & Benefits

• Light weight of 60g makes handling during installation simple
• 3/2 way configuration provides bidirectional control and an effective exhaust
• 10 bar maximum operating pressure is suitable for heavy-duty applications
• Standard G1/8 thread for secure fitting with pneumatic equipment
• Nitrile rubber seals block out dust and contaminants for optimal performance

Applications

• Automotive industry
• Medical and pharmaceutical manufacturing

What's the operating temperature range of this valve?

This valve has a wide operating temperature range of 0°C to +70°C, making it suitable for use in demanding conditions.
