03041102, Norgren Roller 3/2 Pneumatic Manual Control Valve Super X Series, G 1/8, 1/8in, Клапан

IMI Norgren 3/2 Pneumatic Manual Control Valve, 0.9 to 10 Bar Operating Pressure, 31N Operating Force - Super X Series - 03041102

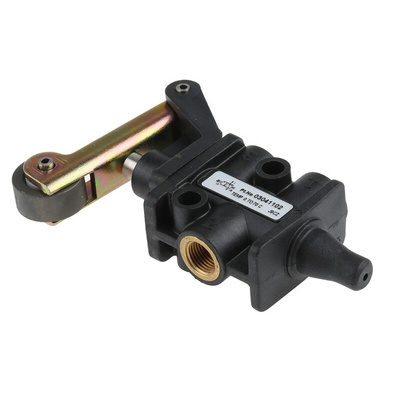

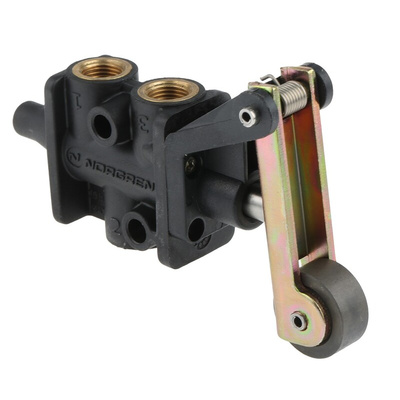

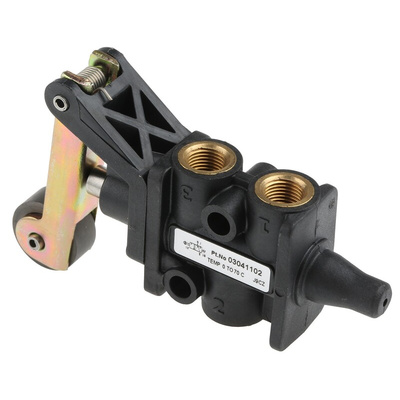

Effectively manage the operation of your pneumatic cylinders with this manual control valve from IMI Norgren. It's a 3/2-way unit, which means that it has three connection ports and two positions to control the forward and reverse movements of your devices. The valve has a spring-return roller lever that actuates the cylinder when force is applied. Its polyamide body is durable and can withstand impact, making it suitable for use in harsh industrial environments.

Features & Benefits

• Low weight of 90g, so it's simple to mount and won't put pressure on your pneumatic system
• Low operating force of 31N for quick and sensitive response to the impact on the lever
• Operating pressure range of 0.9 to 10 bar for versatile use

Applications

• Lifts and escalators
• Machine prototyping
• Robotics and automation systems

How do I mount this control valve?

This control valve has a G1/8 thread to fasten it to a connection port. Use a simple wrench to lock it in, where it will remain stable even in vibrating systems.
