03041002, Norgren 3/2 Pneumatic Solenoid Valve - Solenoid/Spring G 1/8 03 Series, Клапан

One way Trip/Spring valves

Valves suitable for use with cylinders up to 50mm bore for most applications. Suitable for multi-directional flow and dual supply applications. High flow capacity. Made from lightweight, corrosion-resistant materials.

Note

Due to manufacturer change, new body materials are moulded polymer (Fortron PPS), replacing the older metal body

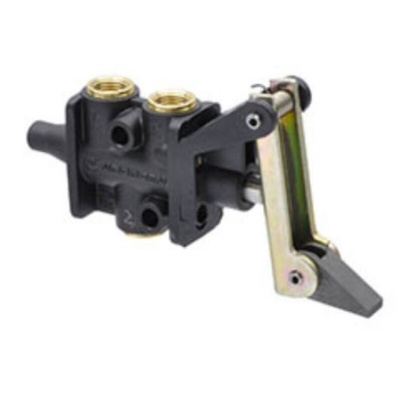

IMI Norgren Pneumatic Solenoid Valve, Zinc Alloy Body Material, 3/2 Function - 03 Series - 03041002

For a system that jumps into action without your help, opt for this pneumatic solenoid valve from IMI Norgren. Thanks to its trip lever and spring actuation setup, it's ideal for installation in automated equipment. It features an NBR seal that keeps air free of debris that could otherwise cause blockages or inefficient running. The unit works well under pressure – put it to the test at levels up to 10 bar. It also supports a flow rate of up to 335L/min, making operating small pneumatic devices a breeze.

• Mounting is a cinch thanks to through-holes located on the unit's body
• Standard G1/8 port makes quick work of installation and maintenance
• Broad operating temperature range between 0°C and +70°C for use in challenging environments.

Applications

• Factory automation
• Manufacturing machinery
• Automotive industry

How much force is needed to activate this valve?

It takes 31 Newtons to start this solenoid device, which is easy enough for workers to activate manually in a pinch.

What's a 3/2 valve?

A 3/2 valve like this one has three inlet and outlet ports and two positions. It's used with a single-acting cylinder to direct or stop flow in your pneumatic system.
