03060202, Norgren Roller 3/2 Pneumatic Manual Control Valve 03 Series, G 1/4, 1/4in, Клапан

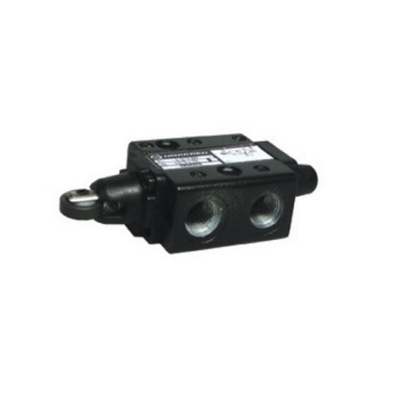

IMI Norgren Pneumatic Manual Control Valve, 3/2 Function, Roller Control Mechanism - 03 Series - 03060202

Choose this manual control valve from IMI Norgren to direct the flow of air in your pneumatic equipment through 3 different ports. It has a standard G1/4 threaded connection so you can quickly connect it to a port without the need for any tools, while integrated through-holes in its body cut down your installation time. The hard-wearing zinc alloy body has high tensile strength for resistance to hard impacts. As it has a wide operating temperature range between 0°C and +70°C, you can safely use this unit in demanding environments.

Features & Benefits

• High operating force of 61N for durable performance
• 3/2 configuration enables dual air supply for versatility
• NBR seals are solvent-resistant to withstand harsh conditions
• Broad operating pressure range between 0.9 and 10 bar for safe use in low-pressure environments
• Maximum flow rate of 965L/min to withstand high-flow systems

Applications

• Energy industry
• Military equipment
• Assembly plants
• Medical and pharmaceutical industry

What type of cylinders can I mount this valve with?

This valve is designed to fit cylinders with bore sizes of up to 50mm making it suitable for use in larger machines.
