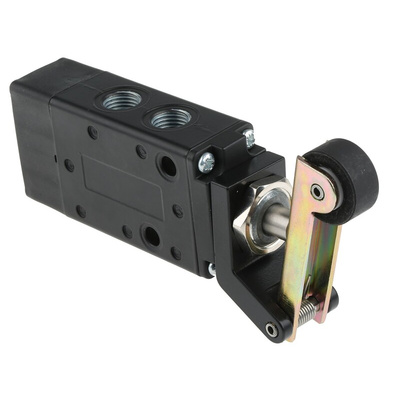

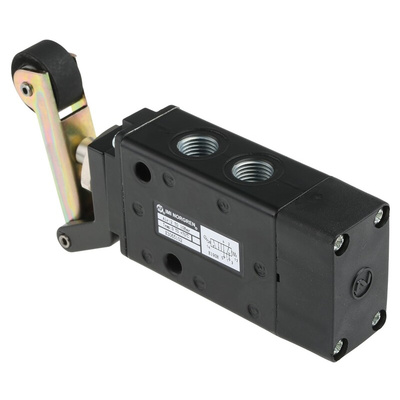

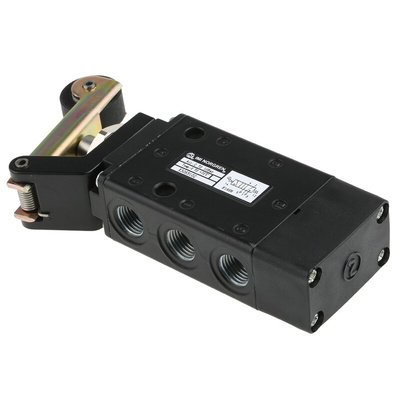

Norgren Roller 5/2 Pneumatic Manual Control Valve X30 Series, G 1/4, 1/4in, X3065102, Клапан

IMI Norgren Pneumatic Manual Control Valve, -0.9 to 10 Bar Operating Pressure, 45N Operating Force - X30 Series - X3065102

Reliably control pneumatic cylinders with this manual control valve from IMI Norgren. Its 5/2-way function means it has 5 ports and supports airflow in both directions, making it a versatile choice. Thanks to a wide operating temperature range between 0°C and +70°C, you can use this device in demanding conditions. Its die-cast zinc body is resistant to corrosion and impact, so it delivers a long service life.

Features & Benefits

• Through-holes in the valve's body make it easy to mount
• Standard G1/4 thread size makes it simple to secure in place
• Wide operating pressure range of -0.9 to 10 bar for use in low-pressure and high-pressure applications

Applications

• Manufacturing facilities
• Industrial automation
• Construction industry
• Food processing plants

How does a roller lever work?

Roller levers like this one work in conjunction with cylinders. When the cylinder cam passes over the roller, the valve opens. When the cam releases the actuator, the return spring closes the valve.

What flow rate does this valve support?

This valve supports a high flow rate of 965L/min, making it suitable for use in demanding applications.
