Norgren S/520 Non Return Valve G 1/8 Female Inlet, G 1/8 Female Outlet, 0.3 to 16bar, Клапан

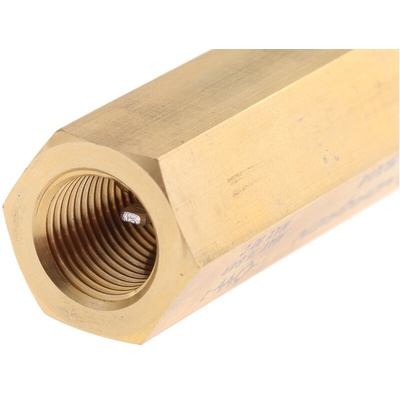

IMI Norgren Brass Non-Return Valve, 16 Bar Maximum Operating Pressure, G1/8 Female Threaded Connections - S/520 Series - S/520

Add an extra layer of protection to your air supply with this valve from IMI Norgren. As it's a non-return valve, it allows the free flow of air in one direction and prevents it from flowing back. This helps to keep your pneumatic system working safely and efficiently. Threaded G1/8 ports at either end of the valve make it straightforward to fit onto pipelines. Working with pressures between 0.3 and 16 bar, this device can handle both high-pressure and low-pressure operations.

Features & Benefits

• Wide operating temperature of -20°C to +80°C for use in harsh conditions
• Brass body makes it strong and durable for use in heavy-duty applications
• Suitable for lubricated air supplies so compatible with pneumatic systems that contain moving parts
• Nitrile rubber seals offer long-lasting protection against air pressure leaks

Applications

• Packaging and bottling systems
• Robotics
• Automotive manufacturing
• Construction industry

What's the cracking pressure of this non-return valve?

The cracking pressure of this non-return valve is less than 0.1 bar, which means it detects even slight changes in pressure and activates quickly.

Datasheet - S/520
