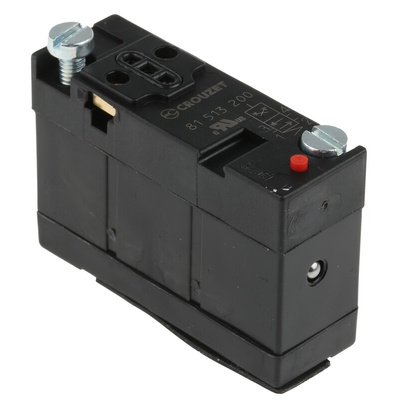

81513200, Crouzet 4/2 Pneumatic Solenoid Valve - Pilot/Spring 81 Series, Клапан

Crouzet Solenoid Valve Module

The Crouzet 81 series 4/2 ports electro-pneumatic miniature solenoid valve has a maximum flow rate of 300NL/min. This monostable valve acts as a functional interface between electrical/electronic control systems and pneumatic drives. It is suitable for compressed air or inert gas and is oil-free. air is filtered up to 50μ.
Warning
Whilst generally considered a safe source of energy, Compressed Air must always be treated with caution and under no circumstances be used for any other purposes than that for which it is intended.

Features and Benefits

Ideal for use with programmable controllers
Operating pressure ranges between 3bar and 8bar
Operating temperature ranges between -10°C and 50°C
Rapid installation and easy maintenance

Certifications

IP65 rated

RS electro-pneumatic interface 3/2 and 4/2 manifold mounted solenoid valve

Datasheet
