03041302, Norgren 3/2 Pneumatic Solenoid Valve - Pilot/Spring G 1/8 03 Series, Клапан

Norgren Super X Series Solenoid Valves

Norgren Super X series solenoid valves with orientable solenoid coils and plugs for easy installation. These highly durable valves are available with 5/2 way or 3/2 way function in a range of G thread pipe sizes, depending on the connection you require.

Features and Benefits

• Choice of solenoid coils, ordered separately


• Captive ’O’ ring soft seal, spool valve design


• Electrical connection 22mm ind std


• Protection rating IP65


• Die cast aluminium body


• Aluminium/glass filled nylon end caps


• Nitrile seals

Note

FS = fully sealed mid-position (all ports closed), SS = supply sealed mid-position (supply port closed, outlet ports open to exhaust)
Due to manufacturer change, valves of 3/2 function now have moulded polymer (Fortron PPS) body which replaces the older metal body

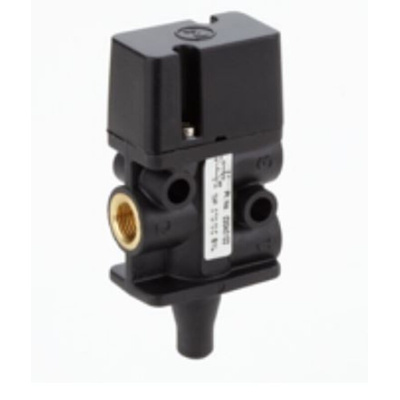

IMI Norgren Pneumatic Solenoid Valve, 3/2 Valve Function, 335L/min Maximum Flow Rate - 03 Series - 03041302

For an air-powered system that runs smoothly, let this pneumatic solenoid valve from IMI Norgren call the shots. It's a pilot control type, so it's an efficient and precise way of managing pressure. As soon as you stop actuation, the unit will reset in a jiffy thanks to the inbuilt spring mechanism. As it supports flow rates of up to 335L/min and handles up to 10 bar of pressure, it's a hard hitter for use in heavy-duty systems.

• Standard G1/8 port thread makes it easy to connect up in standardised systems
• Wide operating temperature range between 0°C and +70°C for reliable industrial use

Applications

• Manufacturing systems
• Automotive machinery
• Construction industry
• Automation equipment

Is G-thread the same as BSPP?

Yes, G-thread and BSPP are identical and interchangeable. So if your system needs BSPP, the same G-thread size will fit.

What accessories go with this valve?

You can adapt this valve to fit your system with a straight (218-0539) or 90° swivel coupling (218-0560). You can also add a sintered bronze silencer to dampen the noise from the exhaust (822-4002).

Datasheet - 03041302
