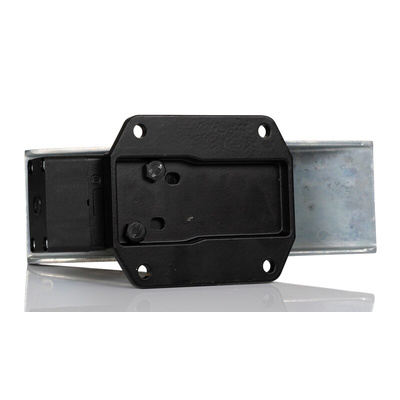

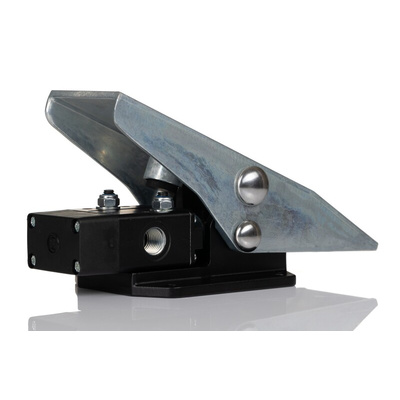

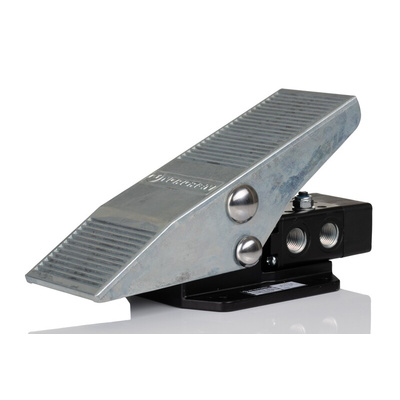

03068302, Norgren Pedal 3/2 Pneumatic Manual Control Valve 03 Series, G 1/4, 1/4in, III B, Клапан

IMI Norgren Pneumatic Manual Control Valve, Zinc Housing, NBR Seals - 03068302

Take charge of simple tasks in your industrial equipment with this pneumatic manual control valve from IMI Norgren. It's a foot-operated 3/2 way device that's used to manage pneumatic cylinders – simply press it down to actuate your kit. This makes it handy for hands-free tasks like lifting and clamping. The unit's zinc housing handles corrosion and impact without breaking a sweat, so it's suitable for use with heavy-duty applications. Regulation G1/4 threaded ports make assembly a breeze as no complex tooling is called for.

Features & Benefits

• Operating force of 22N makes it suitable for light-duty applications
• Safe to use in challenging settings, thanks to an operating temperature range between 0°C and +70°C
• Integrated NBR seals prevent leakages and block out contaminants to ensure optimal performance
• Handles pressure ranges between -0.9 and 10 bar for versatility

Applications

• Medical equipment
• Assembly lines
• Agricultural machinery

How do I keep the pneumatic valve working at its best?

It's important to keep the air input dry enough to prevent ice formation at temperatures below +2°C if you want to keep this unit functioning properly. This prevents blockages and damage.

Norgren, Parker & Herga

Foot switches with a maximum operating pressure of 10 bar.
