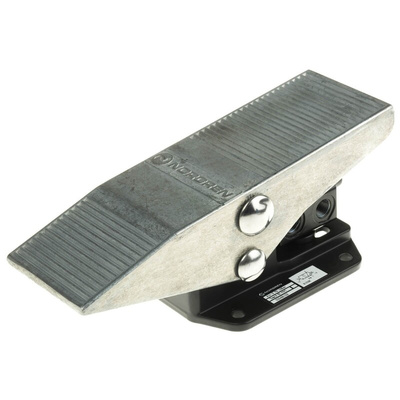

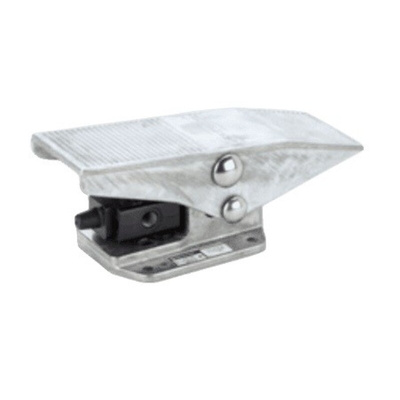

03048102, Norgren Pedal 3/2 Pneumatic Manual Control Valve Super X Series, G 1/8, 1/8in, III B, Клапан

IMI Norgren Pneumatic Manual Control Valve, -0.9 to 10 Bar Operating Pressure Range, G1/8 Thread - Super X Series - 03048102

Need to direct air through your pneumatic equipment? This IMI Norgren manual control valve keeps things moving in the right direction. With its easy-to-use pedal control, you can swap your open ports with a single step and simply breeze through the task of pressure management. As it supports flow rates up to 335L/min, the unit thrives under the pressure of fast-moving applications. The standard G1/8 thread port is widely compatible, so installation is hassle-free.

Features and Benefits

• Durable NBR O-ring forms an airtight seal, helping keep your system's pressure on the straight and narrow
• Compact dimensions of 187 (L) x 84 (W) x 71mm (H), so it's easy to install in a tight spot
• Robust die-cast zinc body resists corrosion and ensures durability in damp areas
• Wide operating temperature range between 0°C and +70°C for use in harsh conditions

Applications

• Dosing processes
• Chemical production
• Construction industry

What medium can I use this manual control valve with?

You can use this unit with compressed, lubricated and filtered air systems, so it's a versatile control component.

Super X Inline Spool Valve Data Sheet
