03040302, Norgren Toggle 3/2 Pneumatic Manual Control Valve Super X Series, G 1/8, 1/8in, Клапан

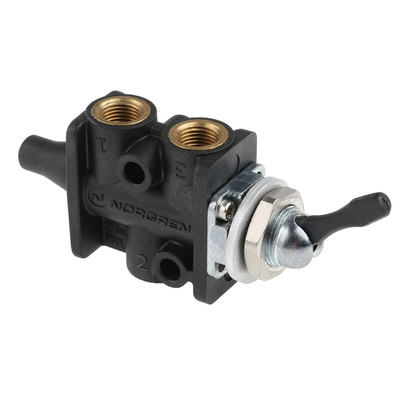

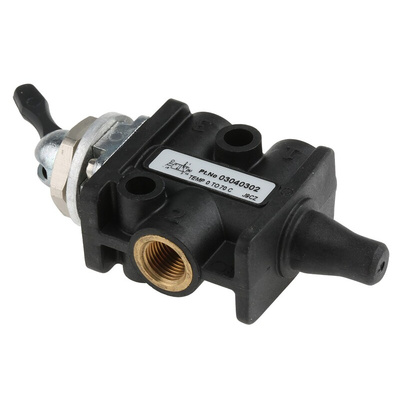

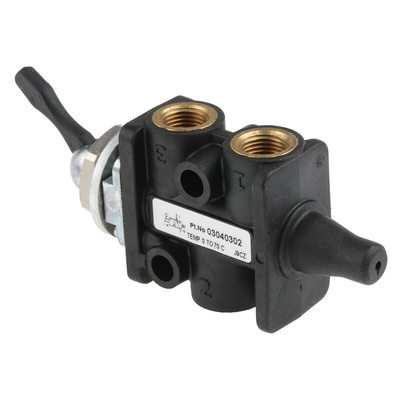

IMI Norgren Pneumatic Manual Control Valve, G1/8 Thread, 10 Bar Maximum Operating Pressure - Super X Series - 03040302

Use this manual control valve from IMI Norgren to direct the airflow inside your pneumatic system. It's suitable for multi-directional flow and dual-supply applications, meaning it can expel air into or receive air from other valves. Mount it simply using the through-hole method to be sure of a secure connection. The valve's lever-style switch is easy to operate manually so you can turn the pressure off and on quickly.

Features & Benefits

• Versatile 3/2 (3 way, 2 position) functionality for manual or mechanical use
• Operating temperature range between 0°C and +70°C for use in harsh environments
• G1/8 threaded end tightens in place to keep the valve secure
• Maximum operating pressure of 10 bar or 145psi (pounds per square inch) for high flow capacity

Applications

• Agricultural machinery
• Pharmaceutical industry
• Manufacturing lines
• Industrial automation
• Shipping cranes

What's the body of this manual control valve made from?

This control valve's body is constructed from a zinc alloy that resists corrosion, even when exposed to high degrees of moisture. This helps the unit maintain its position once installed and delivers a long service life.

Super X Inline Spool Valve Data Sheet

Black Toggle Pneumatic Manual Control Valve
