74004NH.01305, Crouzet Pneumatic Relay Pneumatic Switch, 81 Series

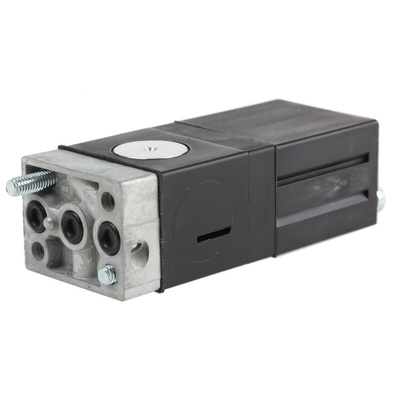

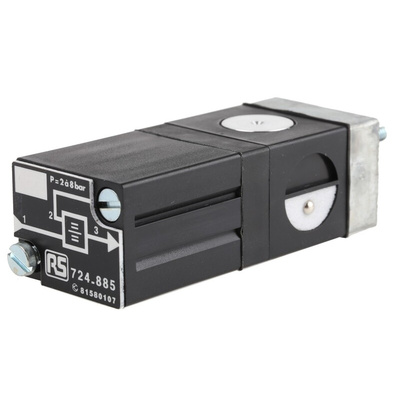

Crouzet Pneumatic Relay

The Crouzet 81 series pneumatic relay has operating pressure ranging between 2bar and 8bar with 2-hand control. This pneumatic 2-hand control device is used with dangerous machinery and requires simultaneous use of both hands to trigger and maintain machine operation. Such a device must be located outside the danger zone so that the operator cannot enter this zone before the machine has come to a complete standstill. An output signal is only generated if both control actuating devices are actuated within 500 milliseconds.
A pneumatic 2-hand control device is composed of 2 parts :
2 manual pushbuttons which require the simultaneous use of both hands.
A pneumatic relay

Features and Benefits

Hand approach speed < 1.6m/s
2.5mm orifice diameter
Sub-base connection
Operating temperature ranges between -5°C and 50°C

Certifications

CE certified
EN 574 +A1

Datasheet
