Parker Single Tube Clamp for 3/4in tube, RAP3-319, Трубный хомут

Tube Clamp Single

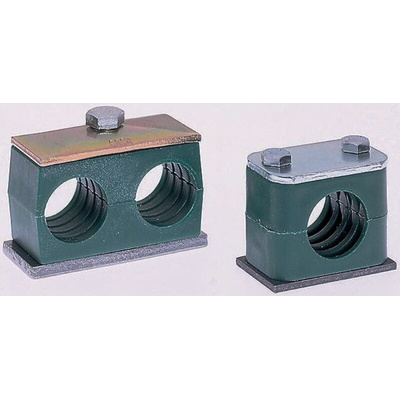

Series A Tubeclamps by Parker designed to enable fixing of straight and bent, tubes and hoses. The clamp body is in two equal halves with a ribbed bore enabling secure fixing while ensuring a high degree of sound deadening and vibration damping. Ideal for light construction, they are available in seven standard sizes for nominal mechanical requirements.

Features and Benefits

•Reset capability
•High-tensile strength
•High abrasion resistance
•Resistant to cold
•DIN 3015
•Operating temperature range -30°C to 90°C
•Polypropylene clamp body with steel weld plate, zinc plated steel top plate and M6 x 30 mm zinc plated steel clamp screws

RAP3-319 Datasheet
