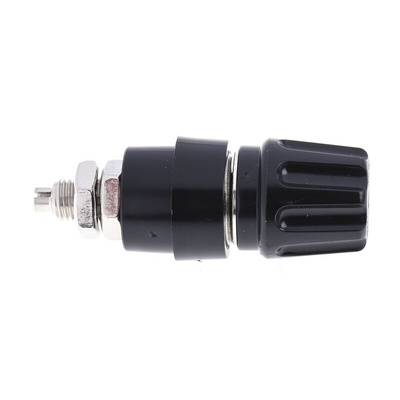

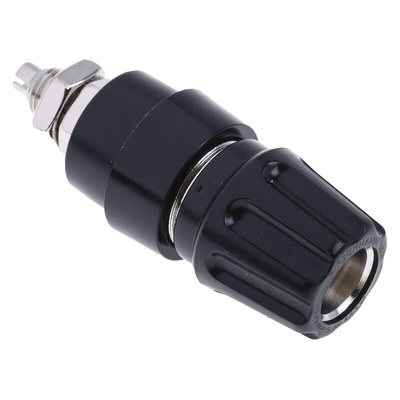

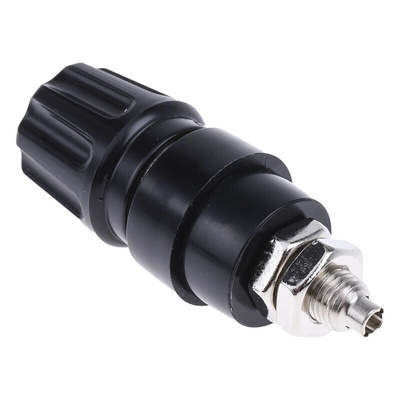

PKNI 10 B, CAT I 4mm Chassis Mount Test Socket
Hirschmann Test and Measurement PKNI10 B, CAT I 4mm gold plated chassis mount test sockets with pole clamp-claw edge, captive-insulated head and insulating ring. Incorporates a 4mm socket and an M6 ´ 0.75mm threaded nickel plated brass bolt with 2.6mm diameter transverse hole for wire connection. For insulated non-rotating installation in equipment chassis and switch panels up to 3.5mm wall thickness.
Rated voltage 30 VAC/ 60 VDC
Rated Current 63A
CAT I
Screw mounting
M6 Termination Thread
Hirschmann Test & Measurement Test Socket
The Hirschmann Test & Measurement black chassis mount test socket has gold plating, a pole clamp-claw edge, captive-insulated head and an insulating ring. It incorporates a 4mm socket and an M6 x 0.75mm threaded nickel-plated brass bolt with a transverse hole of 2.6mm diameter for wire connection. It has a voltage rating of 30VAC/60VDC and a current rating of 63A.
Features and Benefits
Screw mounting
Hole diameter of 4mm
Body material is phenolic resin
Maximum panel thickness of 3.5mm
Contact resistance is 2mohm
Certifications
CAT I
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
