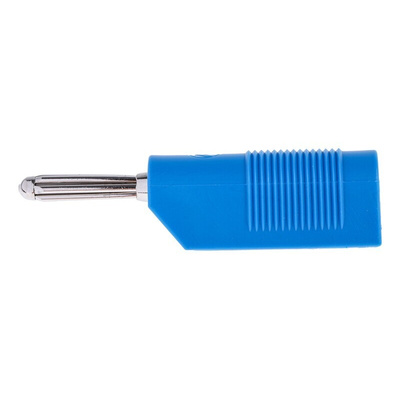

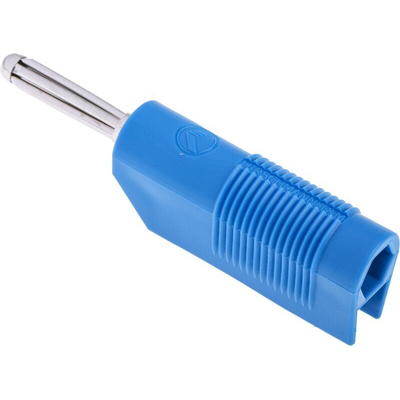

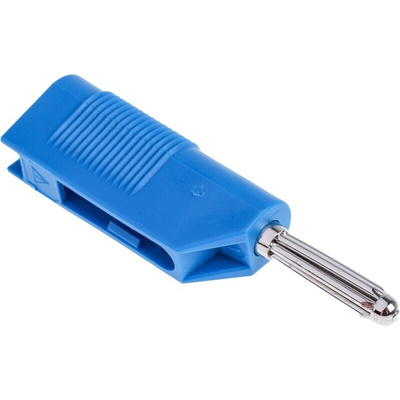

930729102, Hirschmann Test & Measurement Blue Male Banana Plug, 4 mm Connector, Screw Termination, 30A, 60V dc, Nickel Plating

Hirschmann Test & Measurement Banana Plug

The Hirschmann Test & Measurement blue banana plug is a male, multiple-spring wire connector. It has a cable gland and 4mm socket for onward connection capability. It has a voltage rating of 60VDC with a current rating of 30A. The socket in the rear allows other 4mm plugs to be stacked in-line.

Features and Benefits

Screw connection up to maximum cable cross-section of 2.5 mm²
Nickel-plated brass contact material
Insulation material is PP
Spring contact
Length is 56mm

Applications

Electrical connections

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

9307291xx Datasheet
