932146100, Hirschmann Test & Measurement Crocodile Clip 4 mm Connection, Brass Contact, 25A, Black, Зажим

AK 2S 4 mm crocodile clips

Length: 80.5 mm
Crocodile clip with unbreakable insulation on all sides
Clamping range up to 9.5 mm bolt diameter

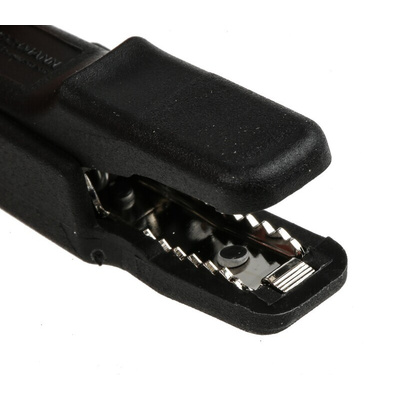

The flat section of the clamping jaws made from tin-plated brass (fine wire-gripping surface) allows fine wires to be connected
Closed against IEC probe on all sides in normal position in accordance with DIN 57 470 part 1
Ø 4 mm socket connector and screw connection for wires up to Ø 1.5 mm

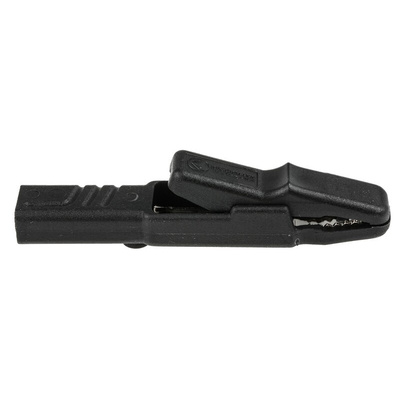

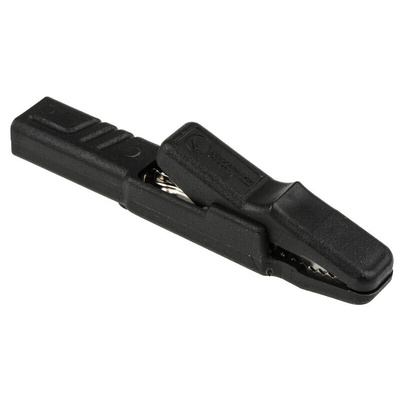

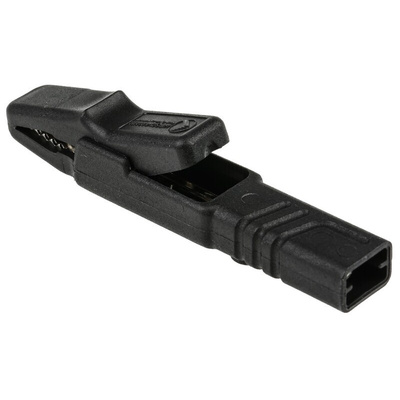

Hirschmann Test & Measurement Crocodile Clip

The Hirschmann Test & Measurement black crocodile clip is designed with high strength insulation and Nickel-plated brass jaws. The flat section of the clamping jaws is made from tin-plated brass that allows fine wires to be connected. It is capable of clamping flat components and wires up to a maximum diameter of 9.5mm. This insulated clip is 80.5mm long.

Features and Benefits

Rated current is 25A and rated voltage is 60VDC
Insulation material is PP
Jaw opening is 9.5mm
Unbreakable insulation on all sides

Applications

Automobiles
Electrical Circuits

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
UL 94 HB approved

AK 2 S Alligator clips
