AK 2S 4 mm crocodile clips
Length: 80.5 mm
Crocodile clip with unbreakable insulation on all sides
Clamping range up to 9.5 mm bolt diameter
The flat section of the clamping jaws made from tin-plated brass (fine wire-gripping surface) allows fine wires to be connected
Closed against IEC probe on all sides in normal position in accordance with DIN 57 470 part 1
Ø 4 mm socket connector and screw connection for wires up to Ø 1.5 mm

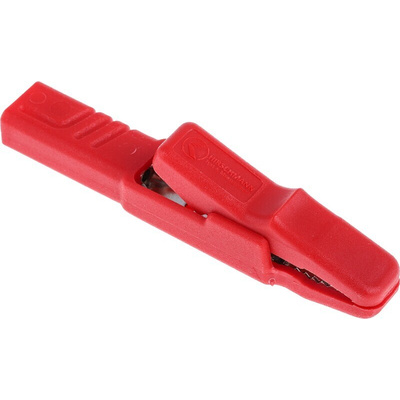

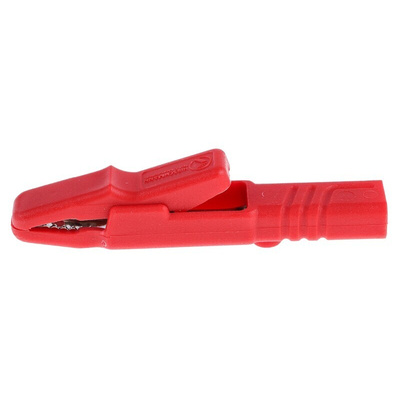

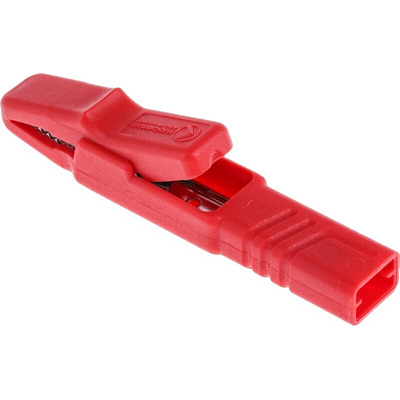

Hirschmann Test & Measurement Crocodile Clip
The Hirschmann Test & Measurement red crocodile clip is designed with high strength insulation and Nickel-plated brass jaws. The flat section of the clamping jaws is made from tin-plated brass that allows fine wires to be connected. It is capable of clamping flat components and wires up to a maximum diameter of 9.5mm. This insulated clip is 80.5mm long.
Features and Benefits
Rated current is 25A and rated voltage is 60VDC
Insulation material is PP
Jaw opening is 9.5mm
Unbreakable insulation on all sides
Applications
Automobiles
Electrical circuits
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
UL 94 HB approved
AK 2 S Alligator clips
