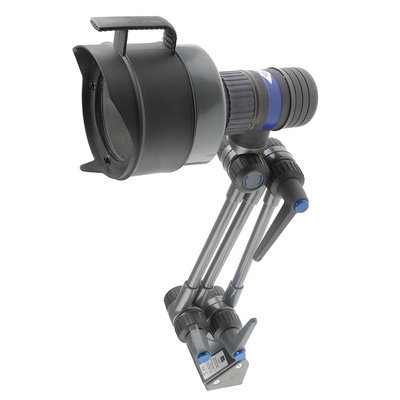

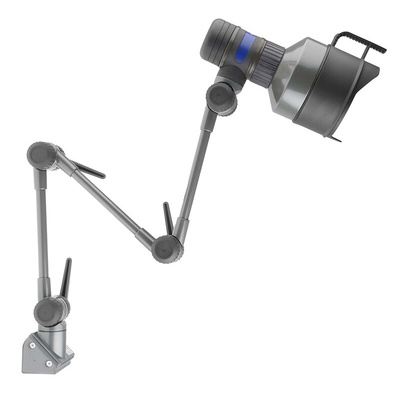

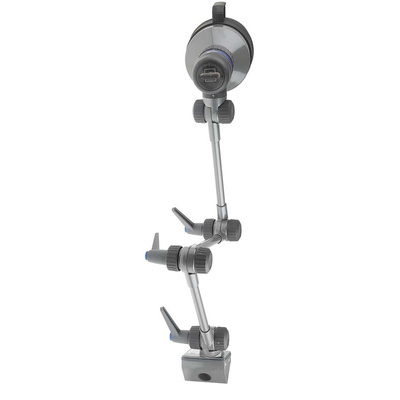

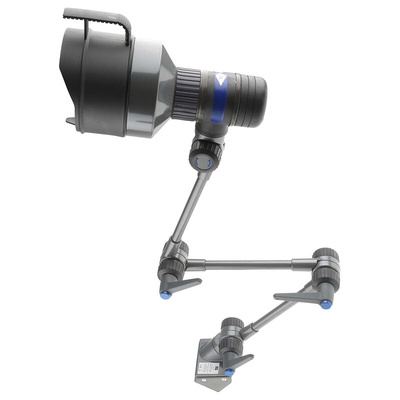

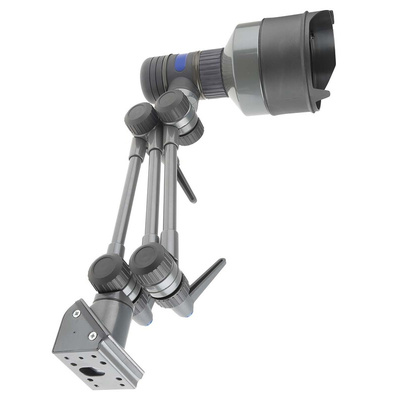

RS PRO LED Machine Light, 230 V ac, 60 W, Articulated, 750mm Reach, 750mm Arm Length

RS Pro Adjustable Arm Long, Machine/Bench Task Light, ES Cap

From RS Pro, this bench task light is the ideal lighting system for those engaging in high concentration, high detail work. With an adjustable base, and an arm with four points of articulation, the operator can ensure there is bright, clear light source where it is needed. This has the advantage of ensuring shadow free work and reducing eye strain.

With friction free joints, the arm adjusts easily and retains its position, and has a handle on the head to facilitate easier positioning. It also has resistance to vibration, which means it is suitable for work around heavy machinery.

The machine and inspection lamp also features a shock resistant thermoplastic head, and the metal parts are protected with a coating of chip-resistant epoxy.

A built in anti-glare visor further adds to the lamps versatility.

This adjustable task light is designed to accommodate LED lamps (sold separately.)

Features and Benefits

• Tested for 30,000 movements.
• 3 steel articulated arms with vibration proof, friction knuckle
• Meets BS4533 Pt 101 and EN60598
• Joint friction adjustment if required with easy action levers
• Anti-glare visor
• Vertical or horizontal mounting base with 20mm diameter conduit entry holes
• Maximum lamp size ES 60W

Applications

With an ingress protection of IP64, this machine light is suitable for some harsh industrial conditions, and has an excellent resistance to particle ingress. It is designed for general purpose illumination and can be found alongside machine stations and work benches alike. Typical applications include;

• Prototyping
• Inspection
• Repair and Maintenance
• Machine lighting

Installation

This machine and inspection light is supplied without lamps, trailing cable or plug, which must be ordered separately. It features a universal mount with an electrical connection terminal block that allows it to be mounted on horizontal or vertical surfaces, for maximum functionality.

Why RS Pro?

RS Pro strives to provide you with the choice and reliability you need in your workplace purchases. Whether you’re a hobbyist or fitting out a factory, RS Pro can furnish you with lighting solutions to suit your requirements.

Providing high-quality hardware tested by our in house experts, RS Pro offers you an assurance of quality at competitive prices.

For workplace lighting in almost any industry, RS Pro has the solution you need.

Note

The task light is supplied without lamp, cable or plug. See accessory links for available products.

Machine/Bench Light

Adjustable 3arm machine/bench task light 60w Data Sheet

Lighting Selection Guide – 33 Pages

RS PRO Datasheet
