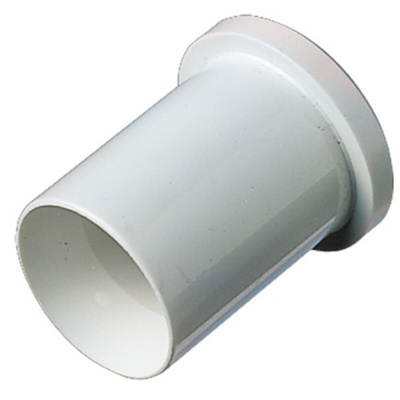

TSM22N, JG Speedfit Pipe Insert, 22mm

Pipe Inserts - Speedfit

Use on all Speedfit Barrier Pipe installations

Maximum working pressure: 12 bar @ 20°C, 6 bar @ 65°C and 3 bar @ 92°C

Max. Working Pressure: 12 Bar @ 20°C, 6 Bar @ 65°C, 3 Bar @ 92°C

Caution

DO NOT USE FOR: Gas, fuel oil or compressed air applications

Standards

BS EN ISO 9001: BS 7291 Parts 1 & 3 Class S

Approvals

Approved to WRC, BBA, PKM, PEM

Approvals

WRC; BBA; PKM; PEM

Standards

BS EN ISO 9001; BS 7291 Parts 1 & 3 Class S

SpeedFit Tube, Conduits & Tube Inserts

Pipe Suitability - Speedfit fittings can be used with: Copper pipe to BS2871 Part 1 / BSEN 1057: 1996, Speedfit cross linked polyethylene (PEX) Barrier Pipe to BS7291. Speedfit fittings cannot be used on stainless steel pipe.,Applications - Mains fed and indirect cold water systems, vented and unvented hot water systems and vented and sealed central heating systems.,Material - Polysulfone, Acetal
