Time Electronics 1044 Current & Voltage Calibrator, Max Voltage 20V, Max Current 20mA, UKAS Calibration, Калибратор

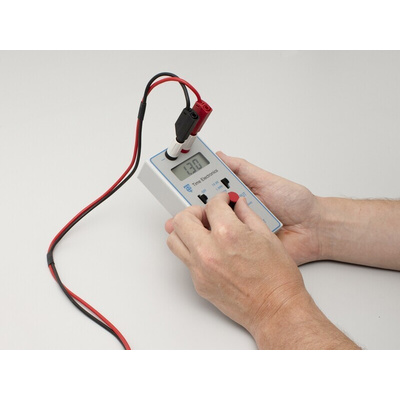

Voltage and Current Calibrator 1044

A pocket size instrument with an accuracy of 0.05% that can source and measure voltage and current in one compact unit.

Three voltage and 3 current ranges
Source output and measurement values displayed on clear LCD
Housed in rugged ABS case
Low battery condition indicator
Can be operated by 1 x PP3 alkaline battery (not supplied)
Dimensions (H x W x D): 142 x 75 x 20mm

Time Electronic Current and Voltage Calibrator

The Time Electronic current and voltage calibrator is a handheld device that combines the advantages of digital accuracy with analogue control. Progressing from the familiar functions of the Time Electronics 1030 calibrator, this precision calibrator offers more ranges, better accuracy along with the ability to measure, source, and calibrate both voltages as well as, current. It measures and sources different voltage ratings from 0mV to 200mV, 0V to 2V, and 0V to 20V. It also measures and sources different current ratings from 0μA to 200μA, 0 to 2mA and 0mA to 20mA. Thus, offering both versatility and practicality. These high-performance and simple operation features make it ideal for test engineers, research and developers, and technicians for simulation and calibration in most engineering applications.

Features and Benefits

A pocket size instrument with an accuracy of 0.05% that can operate in one compact unit
3 voltage and 3 current ranges
Source output and measurement values displayed on clear LCD
Housed in rugged ABS case
Low battery condition indicator
Short circuit protection
Reverse polarity protection
Can be operated by 1 x PP3 alkaline battery (not supplied)
Dimensions (H x W x D): 142 x 75 x 20mm

Applications

Electrical servicing and maintenance
Laboratories
Electronic servicing and maintenance
Industrial automation

Certifications

ANSI/ESD S20.20: 2014
BS EN 61340-5-1: 2007

1044 Voltage & Current Calibrator - Technical Manual

1044 Voltage and Current Calibrator Data Sheet
