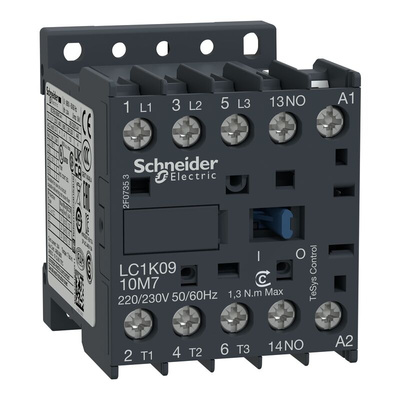

LC1K0910B7, Schneider Electric LC1K Series Contactor, 24 V ac Coil, 3-Pole, 9 A, 4 kW, 3NO, 690 V ac, Контактор

Schneider Electric LC1K TeSys K Miniature Contactors

TeSys K Miniature Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and for inductive motor applications. The TeSys K contactors offer quick simple setup while maintaining compliance with international standards. A special armature structure design allows all devices in the range, either AC or DC, to have the same physical size and panel footprint for convenience.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Easily installed accessories
• Instantaneous auxiliary contact
• Flexible control circuit to suit a wide range of applications
• High-fault short circuit current ratings provide the flexibility to select any component

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.
AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.
AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running.
Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

Are the TeSys K contactors suitable for applications in AC4 usage?

The LC1K series is suitable up to a maximum of 440 V ac in category AC4.

Is the TeSys K range a double break pole type contactor?

Yes the TeSys K range uses linear translation movement that provides double breaking of the poles.

Schneider Electric Contactor, 3600cyc/h Maximum Operating Rate, 1.3W Heat Dissipation - LC1K Series - LC1K0910B7

Turn your circuit on and off with ease using this contactor from Schneider Electric. It works by opening or closing a set of contacts when its internal electromagnetic coil receives energy. The unit features a built-in auxiliary contact that monitors its operating state and swiftly notifies the control system of any changes. With a maximum operating rate of 3600cyc/h, you can rest assured that it keeps up with switching your circuit time and time again.

Features & Benefits

• Minimal heat dissipation of 1.3W for energy efficiency
• Contact current rating of 9A to withstand high-power loads in electrical systems
• Resistant to shock and vibration for durability in demanding conditions

Applications

• Construction equipment
• HVAC systems
• Lighting fixtures
• Power plants

What's the switching time of this contactor?

When the coil is energised or de-energised, this contactor has an opening and closing time between 10 and 20ms to rapidly switch power to your circuit.

How do I mount this contactor?

Thanks to its panel mounting design, you can mount this contactor by screwing it to the surface of your equipment. For versatility, you can also install it by simply snapping it on a DIN rail.

K 3-Pole Contactors for Motor Control -References

CSA 43364

K Series Contactors Catalogue

Green Premium ecolable

LC1K0910B7 Datasheet

Catalogue TeSys Contactors

Product Environmental Profile

Instruction Sheet - Tesys K
