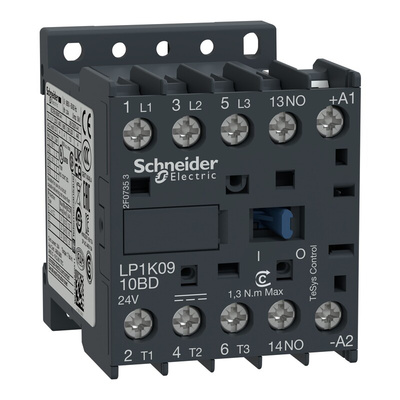

LP1K0910BD, Schneider Electric LP1K Series Contactor, 24 V dc Coil, 3-Pole, 9 A, 4 kW, 3NO, 440 V ac, Контактор

Schneider Electric LP1K TeSys K Miniature Contactors

TeSys K Silent Miniature Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The LP1K range are DC operated contactors recommended for use in areas sensitive to noise and high interference mains supplies. The TeSys K contactors offer quick simple setup while maintaining compliance with international standards. A special armature structure design allows all devices in the range to have the same physical size and panel footprint for convenience.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Coil with rectifier incorporated
• Easily installed accessories
• Instantaneous auxiliary contact
• Flexible control circuit to suit a wide range of applications
• High-fault short circuit current ratings provide the flexibility to select any component

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.
AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.
AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running.
Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

Are the TeSys K contactors suitable for applications in AC4 usage?

The LP1K series is suitable up to a maximum of 440 V ac in category AC4.

Is the TeSys K range a double break pole type contactor?

Yes the TeSys K range uses linear translation movement that provides double breaking of the poles.

Schneider Electric Contactor, Instantaneous Auxiliary Contact Type, 3,600cyc/h Maximum Operating Rate - LP1K Series - LP1K0910BD

Swiftly switch power to your electric circuit with this contactor from Schneider Electric. When its internal electromagnetic coil is energised, it sends a command to the contacts, causing them to open or close. You can be sure it's a speedy device, as it has a 30 to 40ms contact closing time and a 10ms opening time. With a current rating of 9A, it handles the rigours of your high-power equipment.

Features & Benefits

• Compatible with DIN rail and panel mounting for versatility
• Rated impulse withstand voltage of 8kV to stand up to current surges
• Compact dimensions of 58 (H) x 45 (W) x 57mm (D), so slots neatly into a busy enclosure

Applications

• Industrial pumps
• Mining and quarrying industries
• Control panels
• Material handling

How durable is this contactor?

Thanks to its mechanical durability rating of 10Mcycles, this part is low-maintenance and built to be with you for the long haul.

How do I monitor the contact state of this device?

This contactor comes with a built-in auxiliary contact that monitors its operation, letting the control system know when it changes state.
